Fabrication SmartTools

Purpose-built to maximize production within Fab Parts in Revit, Fabrication SmartTools automates manual processes for efficient sheet metal and piping design, enhancing productivity and quality.

Request a demo

Fabrication SmartTools

Purpose-built to maximize production within Fab Parts in Revit, Fabrication SmartTools automates manual processes for efficient sheet metal and piping design, enhancing productivity and quality.

Request a demo

Automated workflows. Immediate impact.

Eliminate the manual, repetitive and time-consuming tasks that are productivity killers with tools that automate MEP detailing processes.

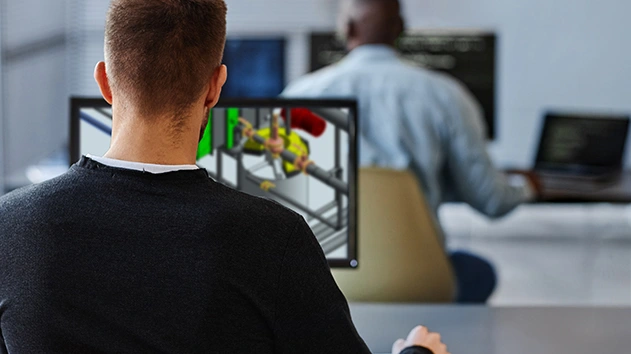

A man viewed from behind looks at a computer screen showing a complex 3D pipe model in Fabrication SmartTools.

Accelerated productivity

The MEP market is moving fast, and so should you. Finish projects on time, within budget and with the quality required for competitive advantage.

Design for fabrication with fewer steps

Eliminate repetitive tasks in Fab Parts in Revit so that MEP contractors can quickly design 3D models, modify designs and create fabrication spools.

Hangers, 8X faster

Automatically place single service fabrication supports such as clevis hangers for pipe and strap hangers for ductwork.

Spools, 5X faster

Define spools and spool runs; auto spool; modify spools; create/modify packages; create sheets; views/schedules; automate dimensions, numbering, annotations and tags.

(Re)numbering

Automatically number/renumber items in a design according to set rules. Give the same number to "like" items and omit certain item types as required.

Bring 3D precision to the field

Streamline layout data and ensure model points are accurately translated in the field with best-in-class point creation and layout functionality.

Available as a subscription

Included within both the VDC Pro and VDC Pro+ subscriptions for detailers.

KLANTEN

Vertrouwd door marktleiders

Tegenwoordig, en elke dag sinds onze oprichting in 1978, wenden 's werelds meest vertrouwde bedrijven zich tot Trimble voor een betere manier van werken om efficiënter, productiever en winstgevender te zijn.

PRODUCT RECOMMENDATIONS

Connected MEP workflows from design to fabrication to the field.

Trimble FabShop sets the bar for complete shop management by providing unparalleled control over and visibility into your entire fabrication process.

Learn more

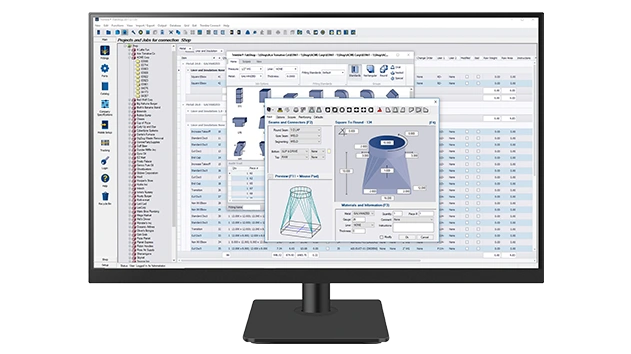

A desktop monitor displays Trimble FabShop software.

CONNECTED SOLUTIONS

Trimble Construction One

CONNECTED SOLUTIONS

Trimble Construction One

Make every aspect of your construction project more efficient with a seamless suite of solutions.

Connect, share and collaborate more efficiently

Reduce errors and rework to maximize profit

Use analytical reports for strategic decisions

Dedicated support, training and implementation

Learn more

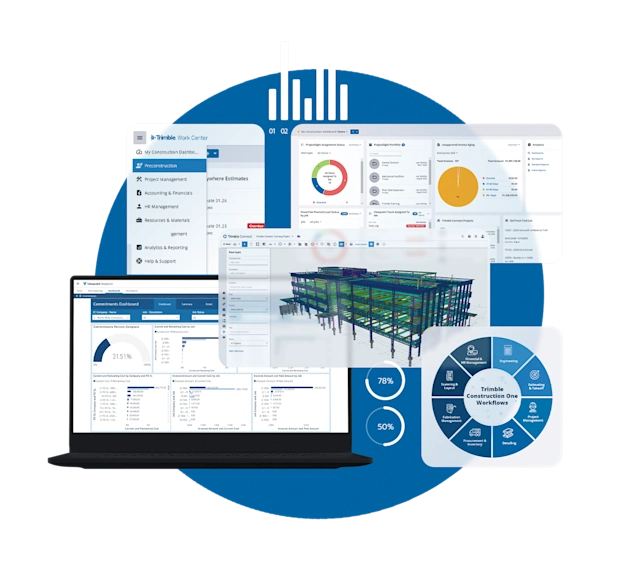

A composite image of Trimble software interfaces that are included in the Trimble Construction One solution suite.
