Founded in South Australia in 2001, Leed Engineering is a privately-owned engineering and civil construction infrastructure company that specializes in water projects that include dams, pipelines, water treatment plants, pump stations, water storage and sewer throughout Australia.
Dig trenches for new pipeline replacement project with speed and accuracy.

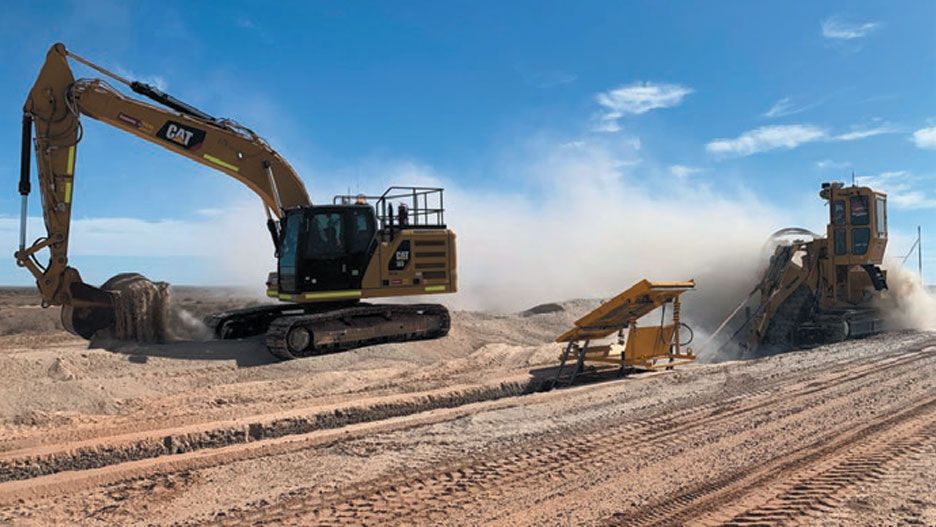

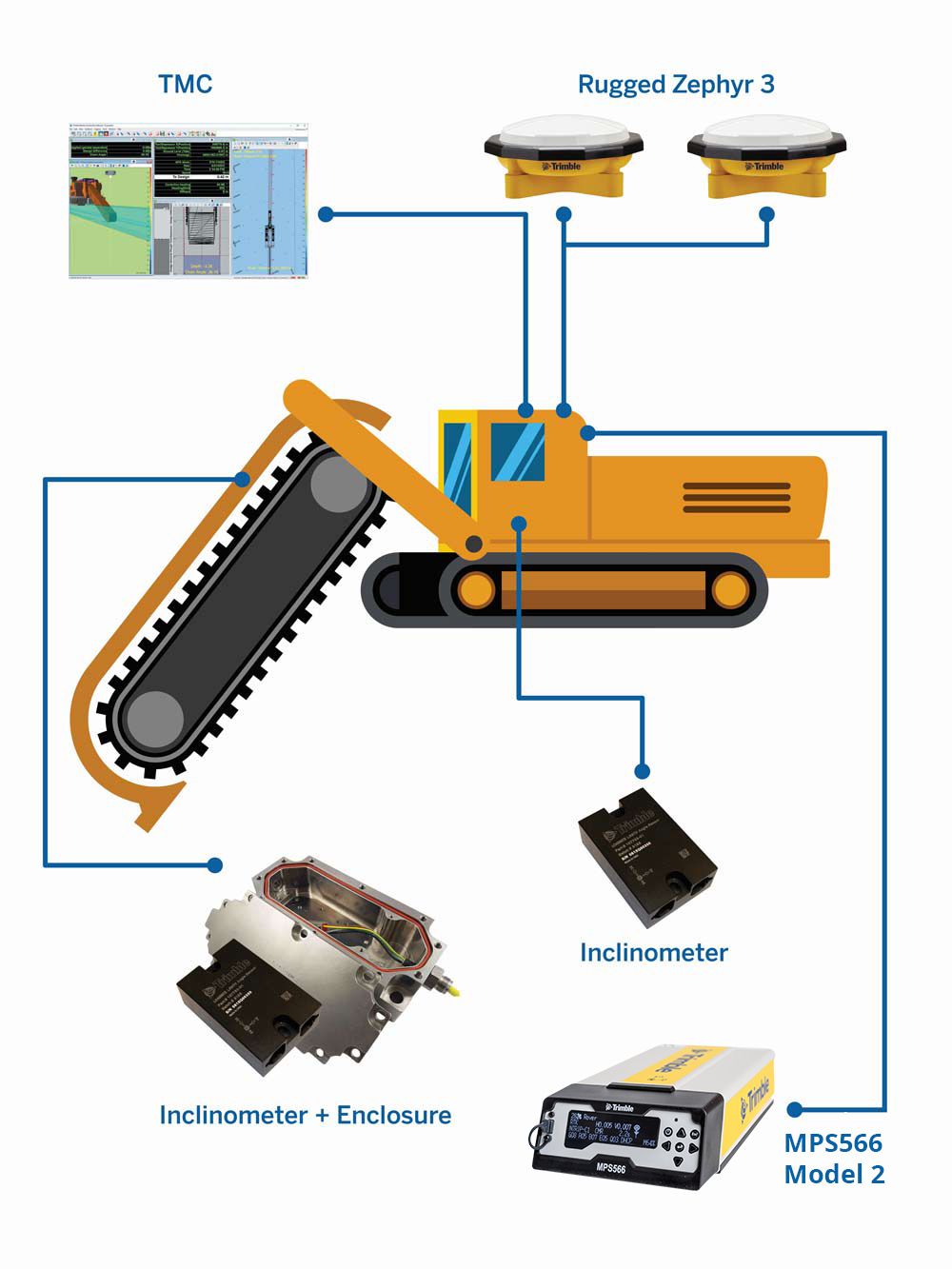

Trimble Trenching machine guidance system including:
MPS865 GNSS receiver
Dual axis inclinometer sensors for pitch and roll in a marine grade submersible enclosure
Rugged Trimble Zephyr dual antennas on short masts
Faster trenching workflows saving up to hours per day
More detailed and more accurate (<20 mm) as-builts
Uninterrupted operation despite high vibration, atmospheric dust or limited daylight
Safer job sites with lower labor costs
BHP engaged Leed Engineering and Construction Pty. Ltd. to replace a 67 km section of the existing 200 km long DN600 MSCL underground water pipeline. The pipeline was replaced and all replacement pipework buried. Other key tasks associated with the project included installing valve pits, performing tie-ins, installing and testing of galvanic cathodic protection and hydrostatic testing of the new pipeline. Although placing pipeline is seemingly straightforward, and Leed Engineering does this exceptionally well, recent technology advances helped improve productivity of the project by upwards of 50%. The system performs even better when working through a radius, as there is reduced or no need for stakes, or a surveyor to visit. Craig says, “We’re staking out maybe one tenth of what we’d normally stake out.”
Pipeline renewal requires crews to not just dig and place new pipeline, but to locate and document the new components with precision. On past pipeline trenching projects, Leed Engineering crews have relied on grade lasers to dig the trench and manually spot the pipe joints with GPS to supply accurate coordinates for where each pipe is in the ground.
However, grade lasers lasers didn’t provide consistent accuracy. Matt Foster, Trencher Operator for Leed Engineering, said, “With a laser it might be 100 mm off, due to a false reading or dust in the air, and we need visual line of sight. When it’s dusty, we have to stop. And with every grade change, we had to move the laser. If we had 10 grade changes in a day, at half an hour to reset the laser, it adds up.”
Due to continued re-establishment time of the grade laser, through changing terrain, the trenching crew would be working longer days to keep ahead of the pipelay crew. Trench digging with the laser survey method required crews to dig as much as 15-hours per day, in two shifts to keep ahead of pipelaying production. “Our goal on the M6 project was to increase productivity and reduce fatigue on operators,” Foster said.
After talking to SITECH Construction Systems Pty Ltd in Queensland, Leed Engineering invested in a Trimble Trenching machine guidance system with 3D visualization and accurate trench depth monitoring to within +/-20 mm. Installed on the Vermeer T1055 Track Trencher, the Trenching machine guidance system includes an MPS865 GNSS receiver and two rugged antennas on short masts with two dual axis inclinometer sensors, along with an in-cab monitor.

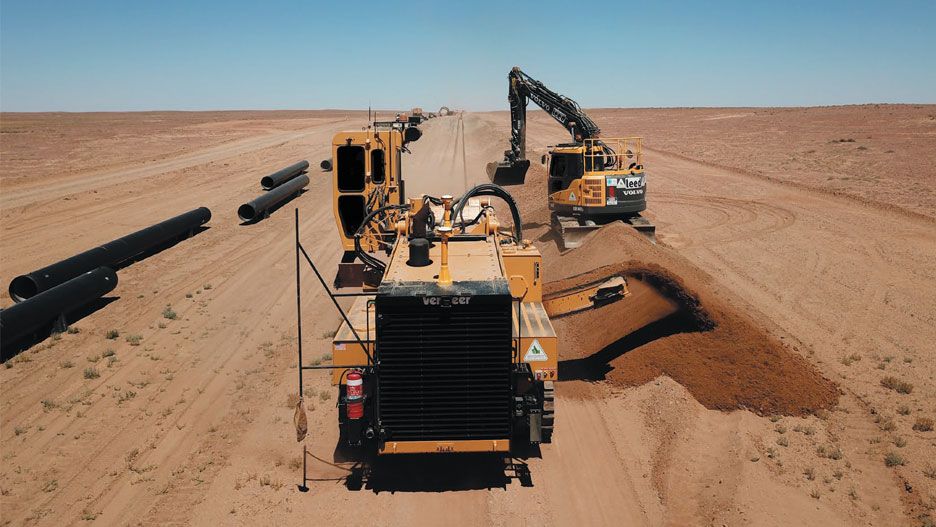

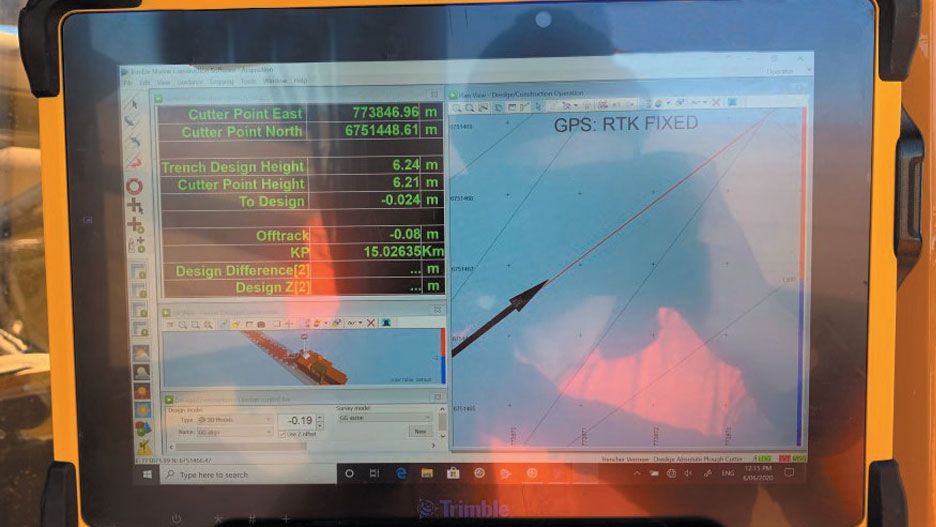

When activated, the Trenching machine guidance system provides accurate positioning relative to the design, vertical measurement to the bottom of the trench, presented as a color-coded interface to help the operator determine precise pipe location.
For every segment of the project, the project engineer would build an AutoCAD model, which was sent to the Trimble Trenching machine guidance system on the trencher.
Craig Watkin, Project Manager for Leed Engineering, confirmed, “We don’t dig faster meter by meter, but in a day, we would definitely increase productivity by up to 500 meters because we don’t have to stop and move a laser. With the laser we could lose several hours in a day. Now, depending on ground conditions, we can dig anywhere up to 1,000 meters per day.”
Callum Cusack, Project Engineer, agreed, adding, “Every 5 meters, we have a point for as-built measurements that we capture with the rover to double-check quality of the work completed, and those as-built measurements are always within 20 mm of the design.”
Foster added that’s a big change from previous methods. The Trimble machine guidance system allows us to work in any conditions,” he said. “We still need to record as-built information once the pipe is placed, but the entire process is more accurate and streamlined. We can dig a productive day quite comfortably 1,000 meters within 8 hours. We may not dig faster, but we are more consistent.”
“Digging the trenches is no longer a critical path,” said Steve Lancaster, Superintendent for Leed Engineering. “Critical path has now shifted to pipelaying and backfill.” He further noted that the increase in productivity has provided redundancy benefits as well. If a machine goes down, production stops on a project such as the Olympic Dam pipeline replacement project. Now, trench digging crews have a buffer and don’t have to work longer days to catch up.
"I can see it being beneficial on both large and small projects as we can reduce the survey time component to maximize the productivity. And, more importantly, there are safety benefits as we can now reduce the risk of people working near moving plant and in trenches." — Craig Watkin, Project Manager for Leed Engineering
The Trimble trench guidance system can be installed with minimal downtime to provide productivity and safety improvements, says Brent Dawson, Technical Consultant at SITECH Construction Systems. He adds, “The interface is easy to use with operators requiring minimal training and support is available via remote screen sharing. It also provides constant logging for quality assurance and billing purposes, removing the need for rework and collection of as-excavated data."
— Brent Dawson, Technical Consultant at SITECH Construction Systems
