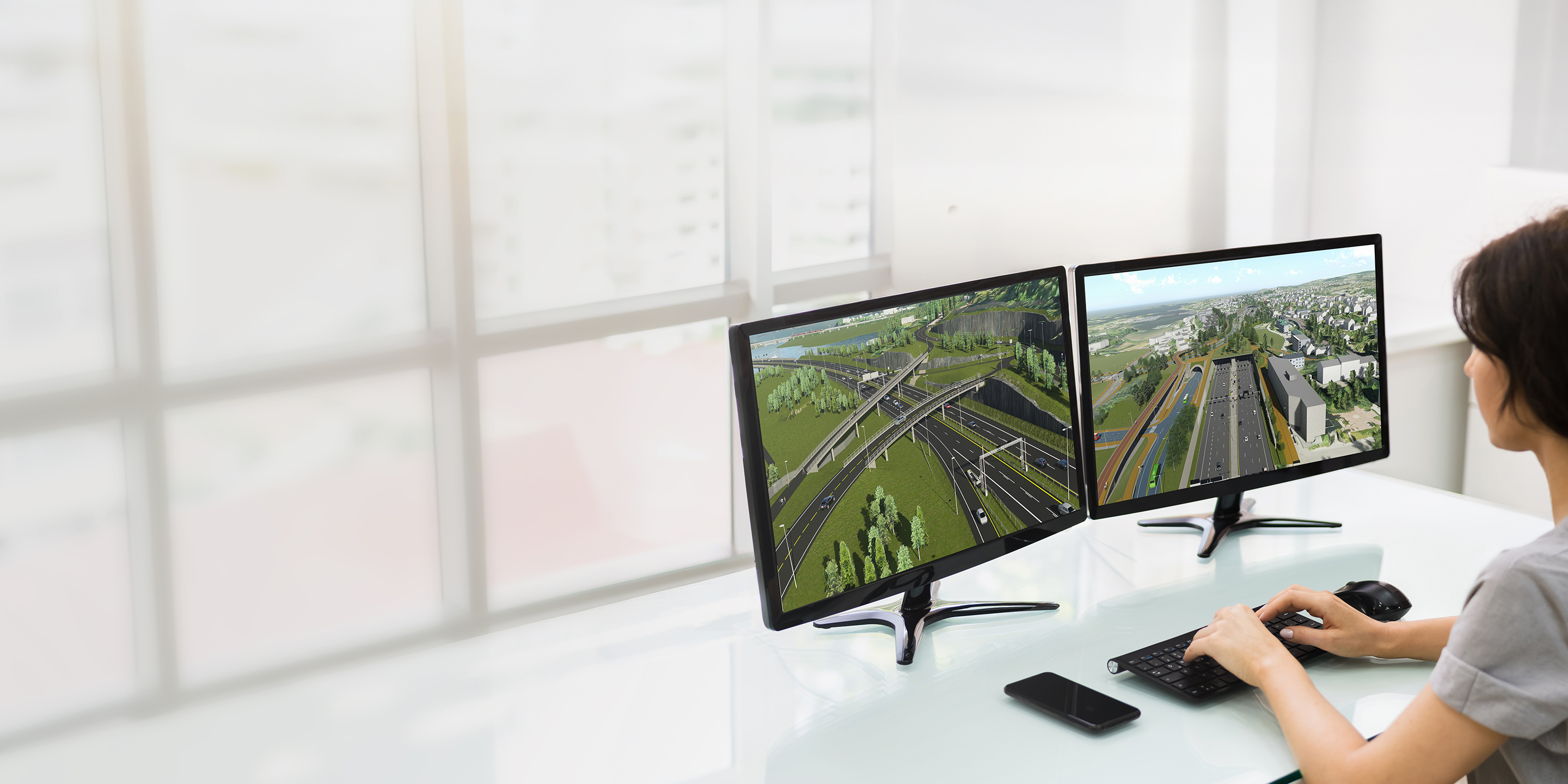

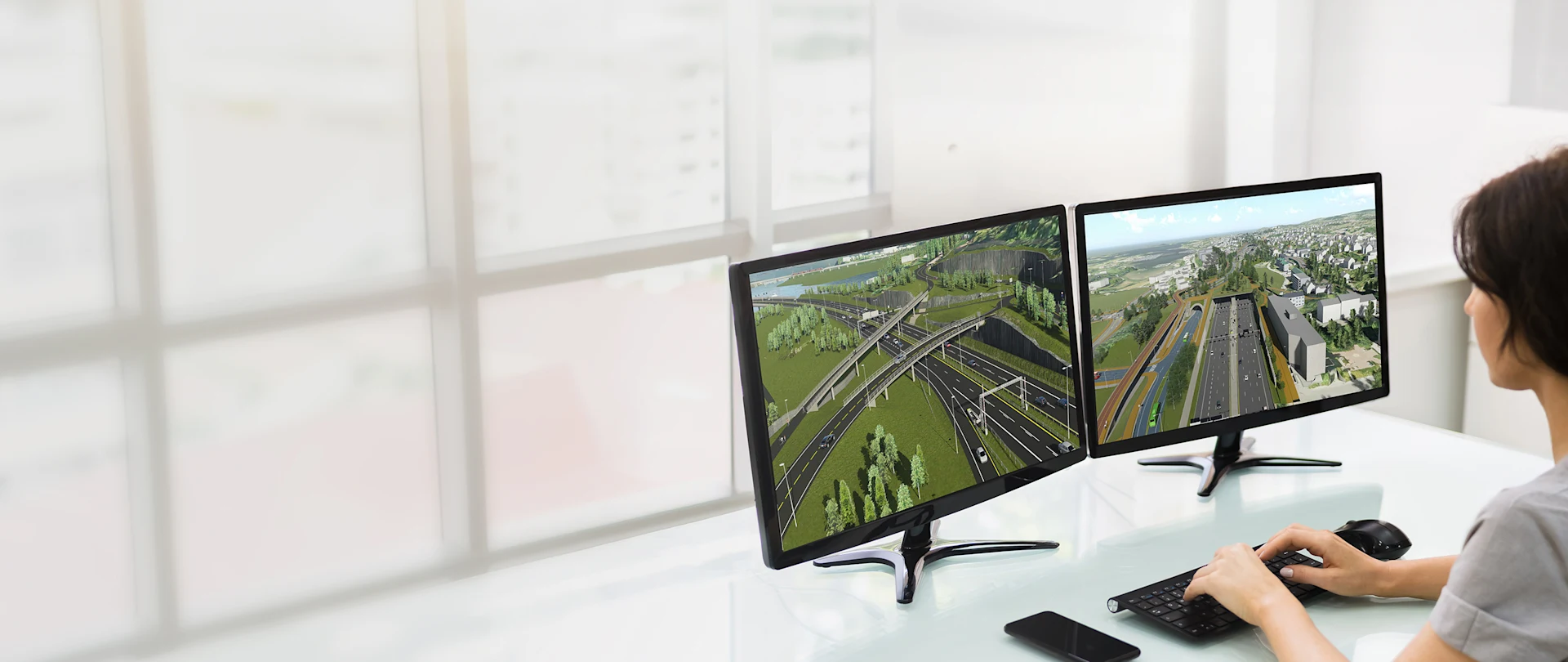

A civil engineer at a desk using Infrastructure Design Suite software to visualize a complex multidisciplinary highway and utility model in a real-world 3D context.

Trimble Infrastructure Design Suite

A unified platform where GIS, CAD and BIM data converge into a digital twin. Bridging the gap between office and field via cloud collaboration, IDS supports the project lifecycle, from modeling existing conditions to delivering machine-ready data.

One unified model

From concept to constructible digital twin

Iteratively design roads, railways, bridges and tunnels that follow core alignments automatically. Parametric modeling and model dependencies ensure that when one element changes, the entire model stays coordinated.

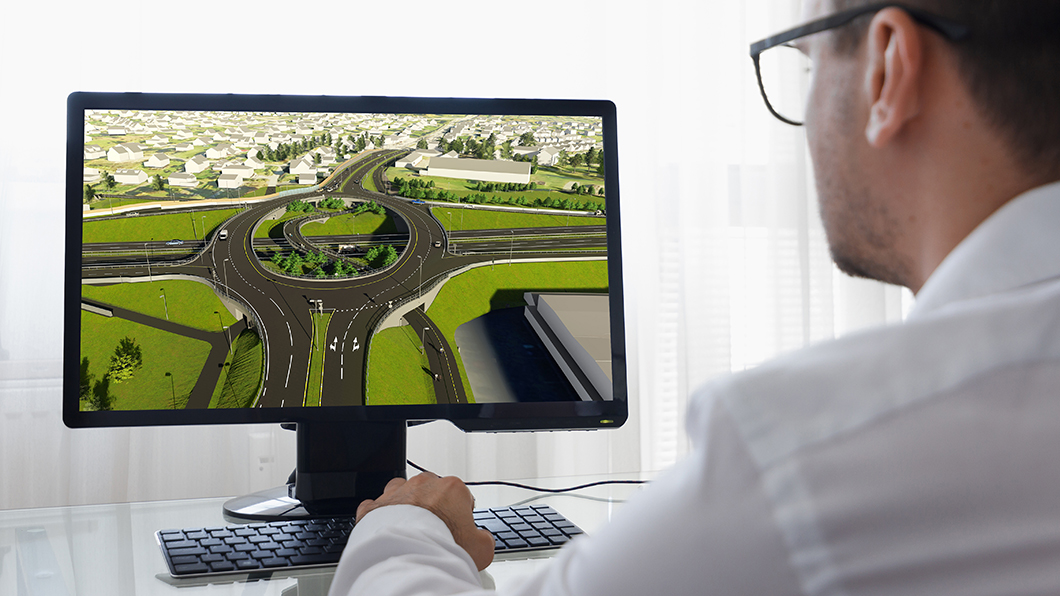

Over-the-shoulder view of an engineer using a computer to design a complex 3D BIM model of a highway interchange and roundabout.

Core capabilities of Infrastructure Design Suite

The Trimble Infrastructure Design Suite is a comprehensive offering that combines the specialized engineering of Trimble Novapoint, the object-based collaboration of Trimble Quadri and the cloud-powered data management of Trimble Connect.

Existing situation modeling

Aggregate terrain, subsurface and GIS data into a validated foundation for design without manual cleanup.

Integrated utilities

Design water and sewer networks in 3D directly against terrain and road subsurfaces.

Automated task management

Track every change with a task-based timeline, providing a live audit trail for project managers.

Regional compliance

Design with local standards for road, rail and utilities. Create advanced traffic signs and gantry models compliant with national specifications.

Plans & Pricing

Find the right plan for you

Infrastructure Design Suite

Contact sales

Establish a validated ground truth and coordinate multidisciplinary teams via Trimble Quadri and Trimble Connect.

What’s included:

Shared object model

Live, cloud-based collaboration

Model soil, terrain and assets

Bi-directional CAD connectors

Normalize data from many sources

Track all model changes live

Infrastructure Design Suite Pro

Contact sales

Advanced parametric modeling for roads, railways, utilities and structures via Novapoint.

Everything in IDS, plus:

Parametric road and rail design

Utility and drainage modeling

Bridges and tunnels in 3D

Planning for local landscaping

Standard road marking tools

Infrastructure Design Suite Premium

Contact sales

Specialized tools for complex 3D road signage and national safety standards.

Everything in IDS Pro, plus:

3D road sign object modeling

Design gantries and plates

Selected national standard compliance

Advanced directional signage

High-fidelity digital delivery

Testimonials

What are Trimble customers saying?

The purpose of the Quadri model is to be an assembled discipline collaboration model, in which the various disciplines simultaneously participate in the design.

— Erik Holmqvist

BIM Strategist, WSP

View all customer stories

CUSTOMERS

Trusted by industry leaders

Today, and every day since we were founded in 1978, the world's most trusted companies turn to Trimble for a better way to work to be more efficient, productive and profitable.

Early-stage optimization

Smarter route alternatives with Trimble Quantm

Early-stage optimization

Smarter route alternatives with Trimble Quantm

Use Trimble Quantm to evaluate thousands of route alternatives. By integrating environmental, legal and construction costs, Quantm identifies the most sustainable and cost-effective corridor, reducing planning time and project risk.

Faster feasibility: Test "what-if" road and rail alignments in days using path-finding algorithms.
Environmental compliance: Automatically avoid restricted zones and respect community constraints from the start.
Cost-driven decisions: Get instant earthwork and cost estimates to align budgets before detailed design.
Ecosystem integration: A standalone solution that integrates into the Trimble ecosystem for early-phase optimization.

Discover Quantm

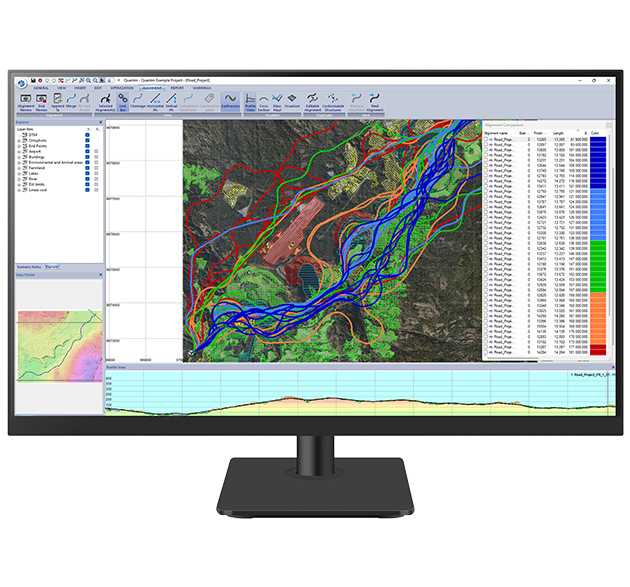

A desktop monitor displays Trimble Quantm software

Frequently asked questions

Can I still use my existing design tools like Civil 3D?

Yes. Infrastructure Design Suite features bidirectional desktop connectors that enable feature-to-feature workflows with external applications such as Civil 3D, OpenRoads and Tekla Structures.

How does Infrastructure Design Suite improve office-to-field workflows?

Infrastructure Design Suite produces constructible models that can be delivered directly to site devices via WorksManager or through open formats like IFC 4.3 and LandXML.

What is the benefit of an object-based model over file sharing?

Unlike static file sharing, Trimble Infrastructure Design Suite integrates data into a single, live and object-based environment. This eliminates productivity losses and version errors caused by disconnected silos, enabling real-time collaboration and iterative design within a common coordinate system.

Which industry data formats does the suite support?

The Trimble Infrastructure Design Suite is built on an OpenBIM philosophy. It natively supports IFC 4.3, as well as LandXML, DWG, DGN and TTM, ensuring you can meet strict digital delivery requirements and exchange data across the project lifecycle.

Where is my project data hosted and is it secure?

Your data is hosted on the scalable Quadri Gen 5 cloud (powered by Microsoft Azure). To meet local compliance and security needs, we offer regional data residency in several locations, including the EU, US and UK.

Let’s talk

Our sales team is here to answer questions and help you get started.

Choose the right solution for your workflows
Get pricing information
Schedule a demo

If you need to contact support, please visit Support Services.

Frequently asked questions

Can I still use my existing design tools like Civil 3D?

Yes. Infrastructure Design Suite features bidirectional desktop connectors that enable feature-to-feature workflows with external applications such as Civil 3D, OpenRoads and Tekla Structures.

How does Infrastructure Design Suite improve office-to-field workflows?

Infrastructure Design Suite produces constructible models that can be delivered directly to site devices via WorksManager or through open formats like IFC 4.3 and LandXML.
