Fabrication SmartTools

Purpose-built to maximize production within Fab Parts in Revit, Fabrication SmartTools automates manual processes for efficient sheet metal and piping design, enhancing productivity and quality.

Request a demo

Hangers & spools, 5X faster
Reduced project delivery times
The precision of 3D in the field

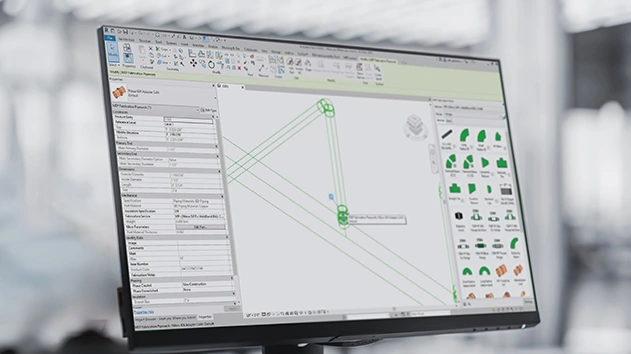

Powered by unparalleled content

Eliminate the manual, repetitive and time-consuming tasks that are productivity killers with tools that automate MEP detailing processes.

The MEP market is moving fast, and so should you. Finish projects on time, within budget and with the quality required for competitive advantage.

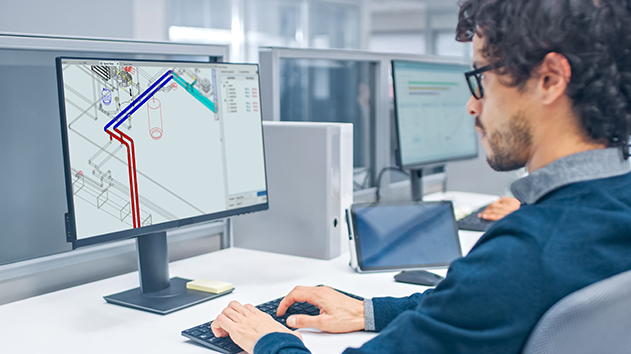

Design for fabrication with fewer steps

Eliminate repetitive tasks in Fab Parts in Revit so that MEP contractors can quickly design 3D models, modify designs and create fabrication spools.

Hangers, 8X faster

Automatically place single service fabrication supports such as clevis hangers for pipe and strap hangers for ductwork.

Spools, 5X faster

Define spools and spool runs; auto spool; modify spools; create/modify packages; create sheets; views/schedules; automate dimensions, numbering, annotations and tags.

(Re)numbering

Automatically number/renumber items in a design according to set rules. Give the same number to "like" items and omit certain item types as required.

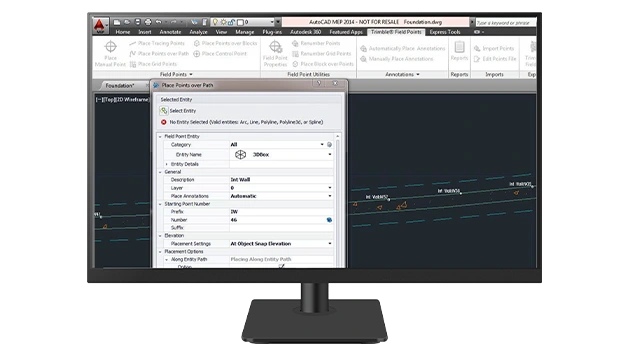

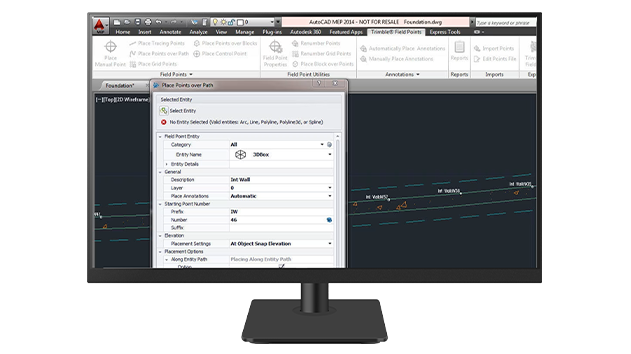

Bring 3D precision to the field

Streamline layout data and ensure model points are accurately translated in the field with best-in-class point creation and layout functionality.

Available as a subscription

Included within both the VDC Pro and VDC Pro+ subscriptions for detailers.
