About the project
Category: Industrial Project Company: SERI Project Location: CRETEIL, France

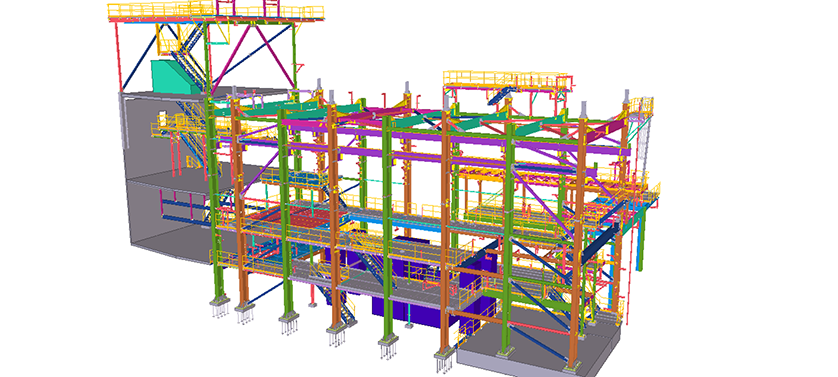

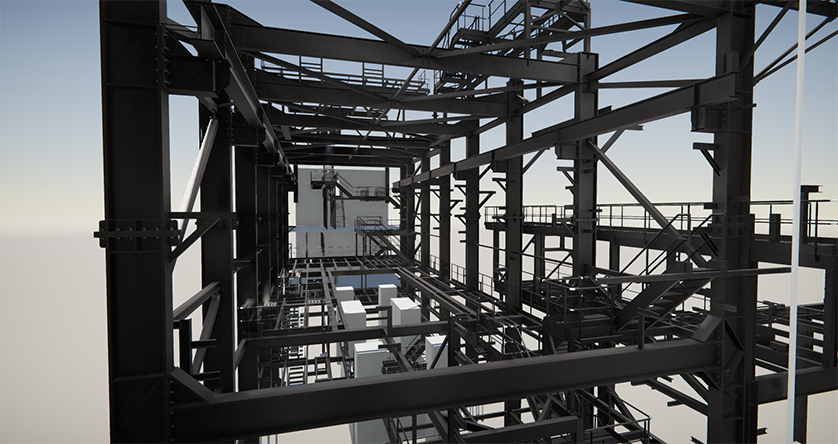

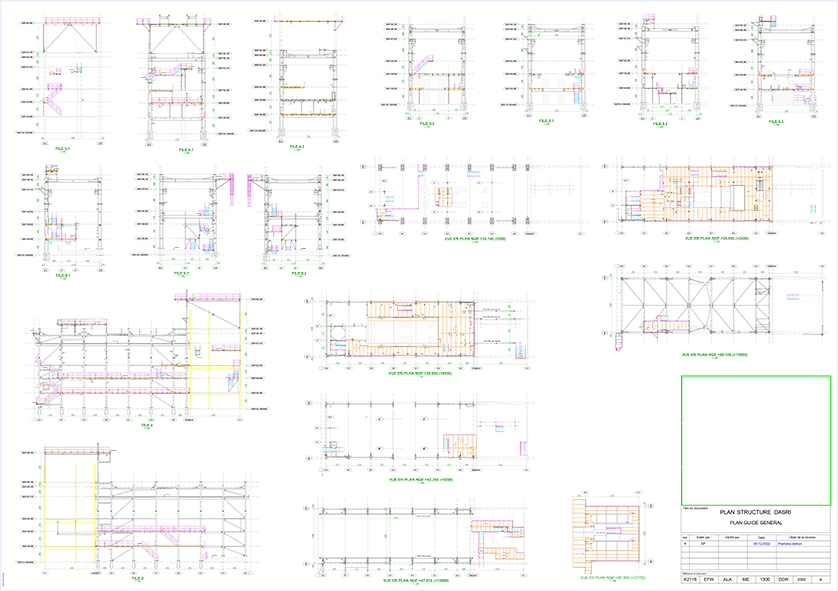

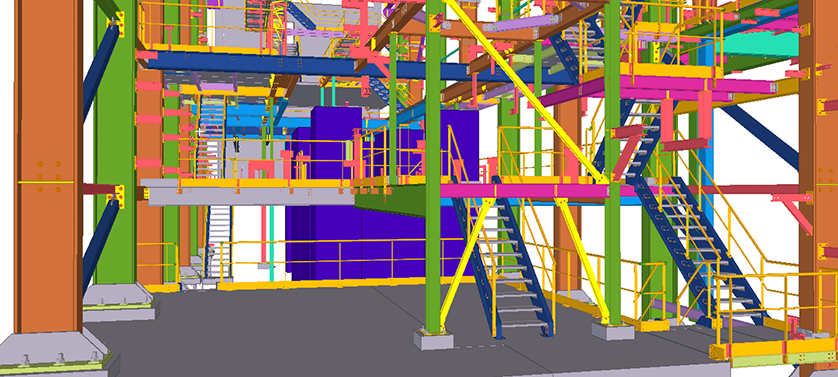

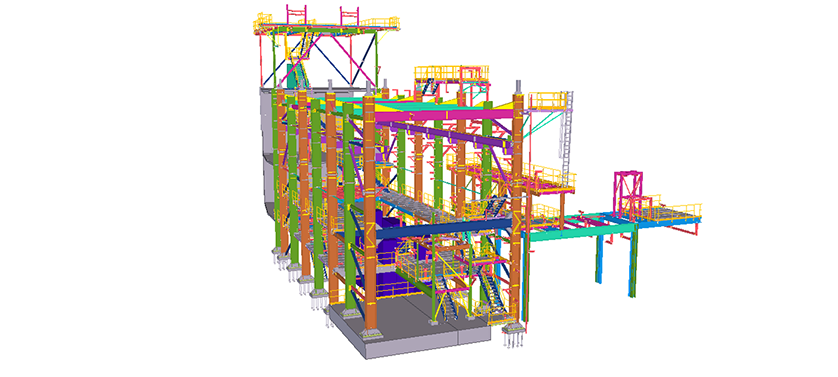

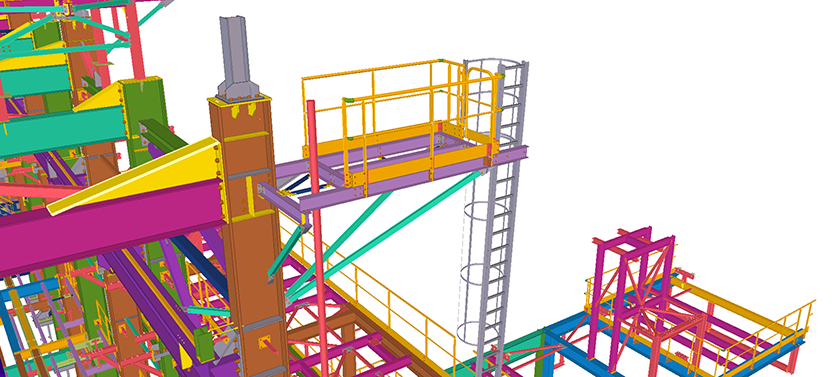

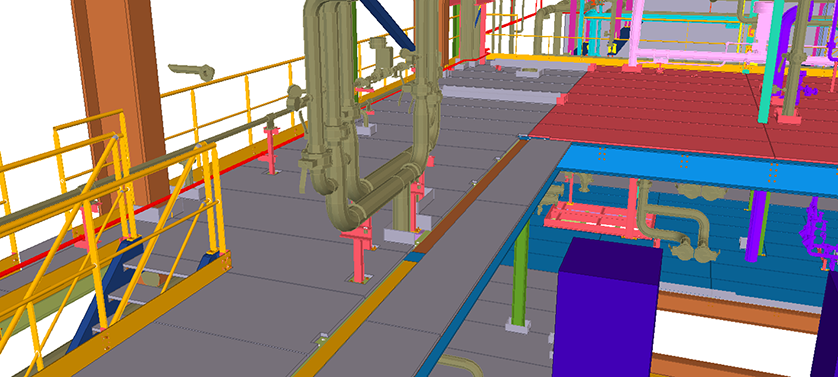

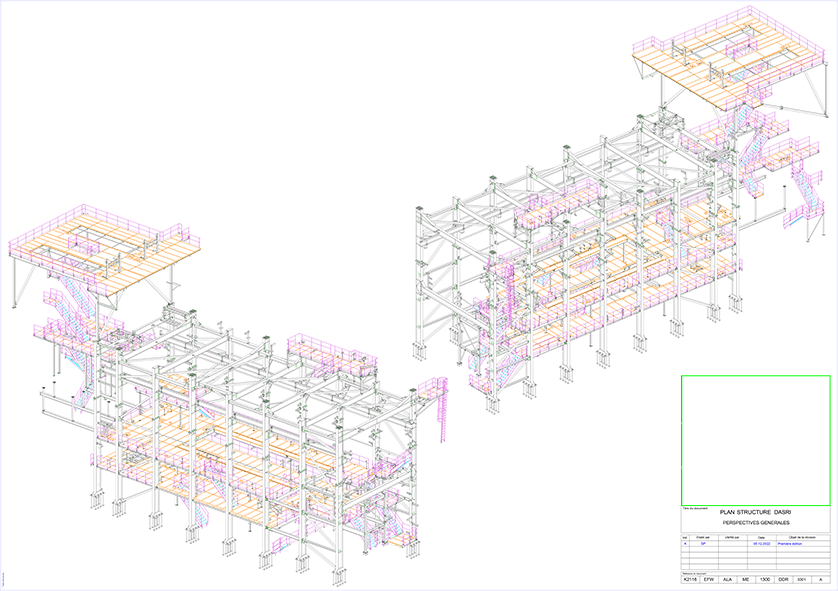

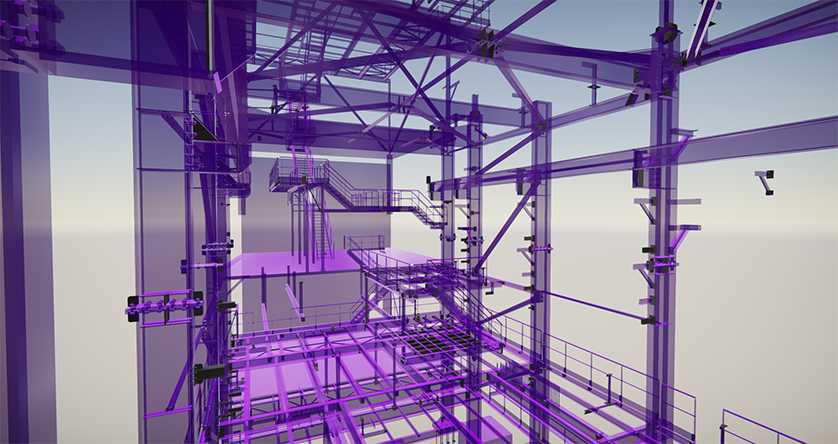

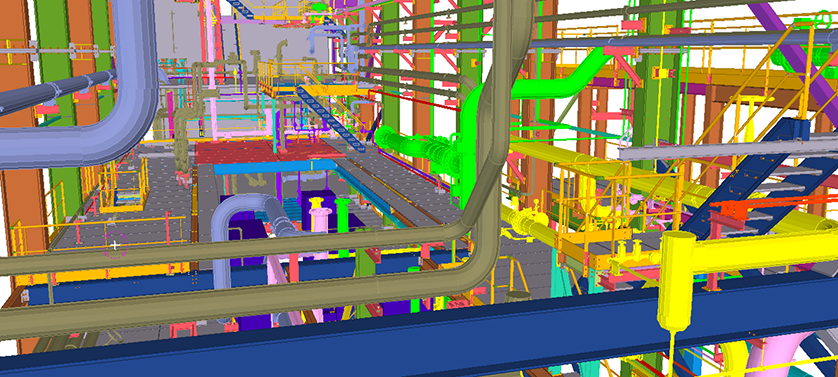

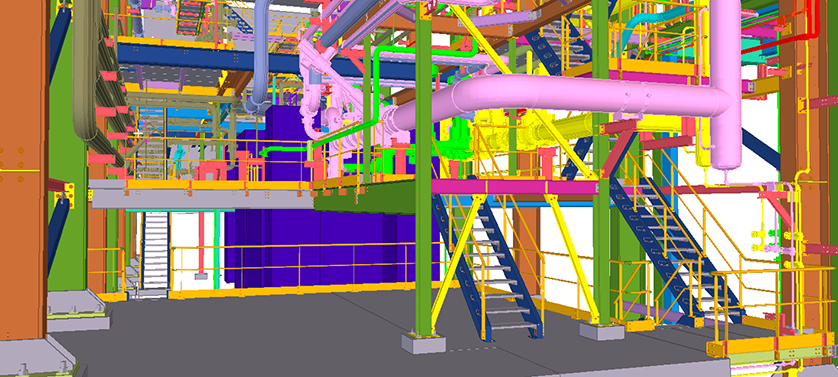

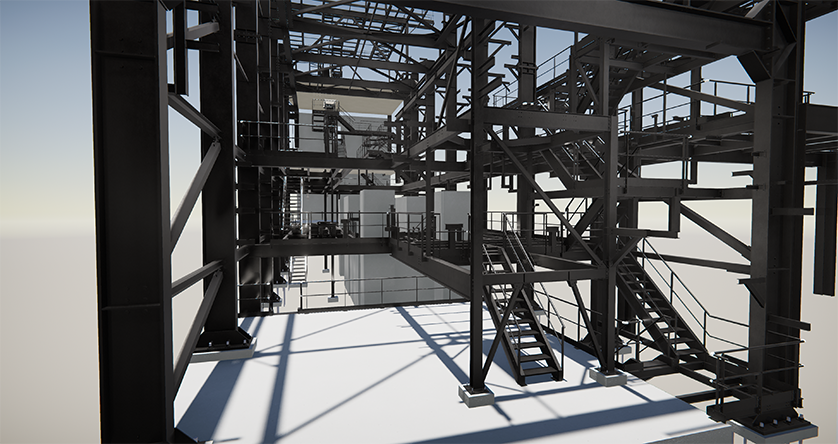

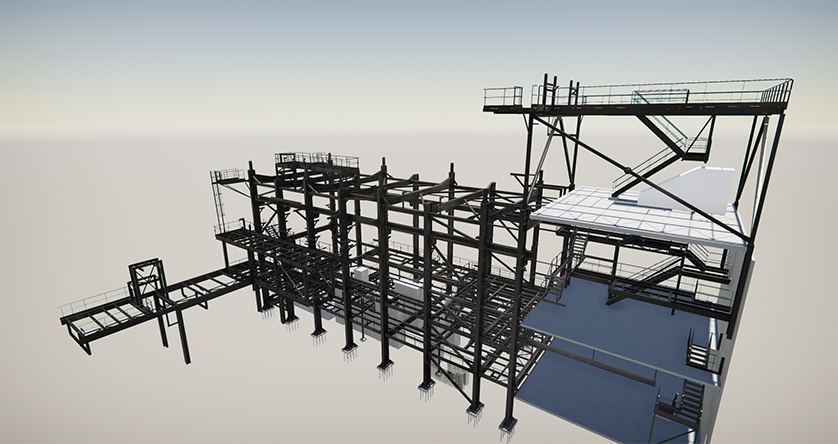

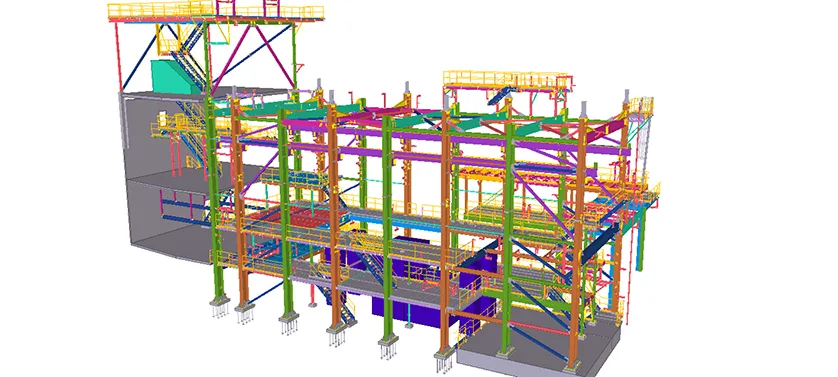

The project in pictures
The project in figures
Weight excluding gratings: 220 Tons Dimensions of main structure: 16 m high X 12 m wide Structure assembled and built inside an existing building. Designed to accommodate a 400-ton roof-mounted unit
Trimble products used
Tekla Structures Trimble Connect
Project description
Energy recovery unit, DASRI incinerator.
Challenges to meet
Very dense and complex structure due to the internal process.
It took an enormous amount of rigor and control via the various media to model the structure.
Structure, decking and metalwork fully launched in production.
Chinese profile modeling.
Without BIM, the file is too dense to miss anything.
SERI's main role
Design office during the execution phase
