About the project
Category: Commercial Project Company: KP1 BATIMENTS Project Location: LYON, France

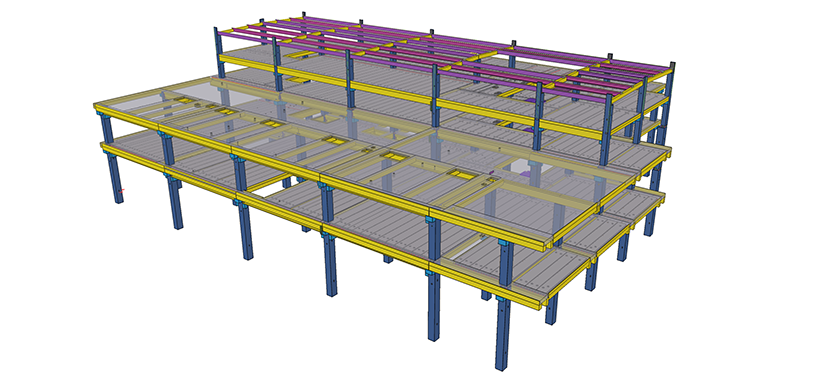

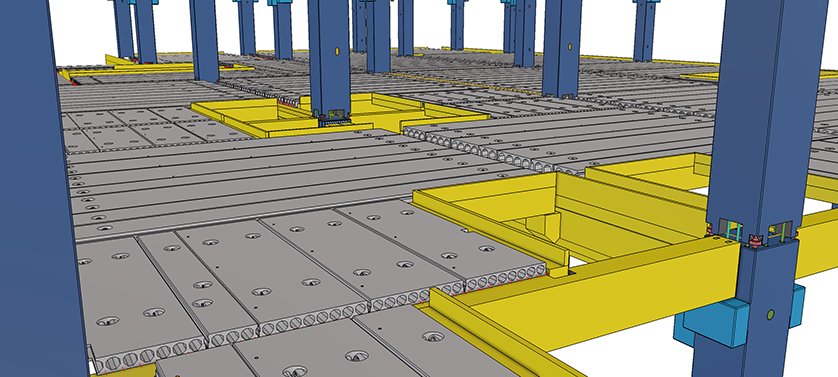

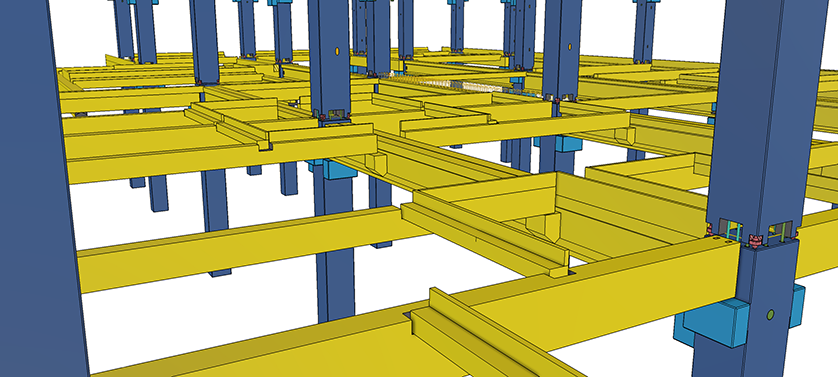

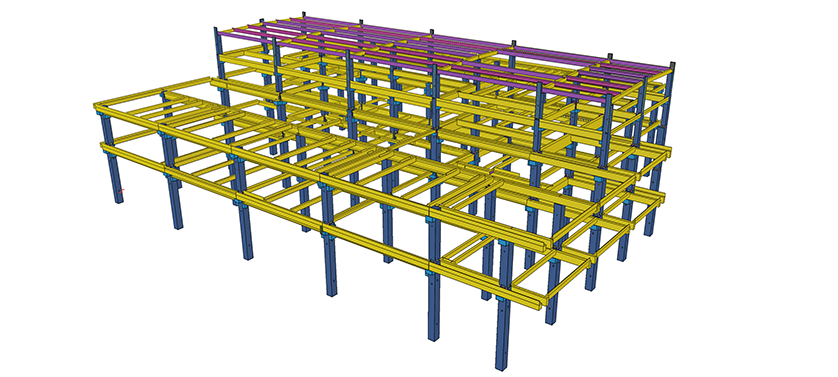

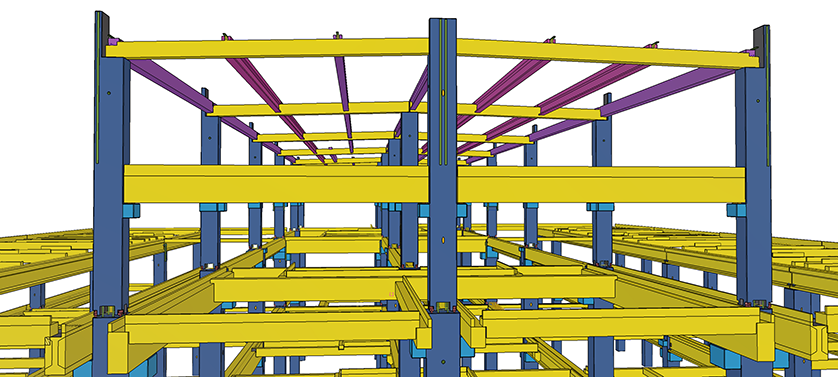

The project in pictures
The project in figures

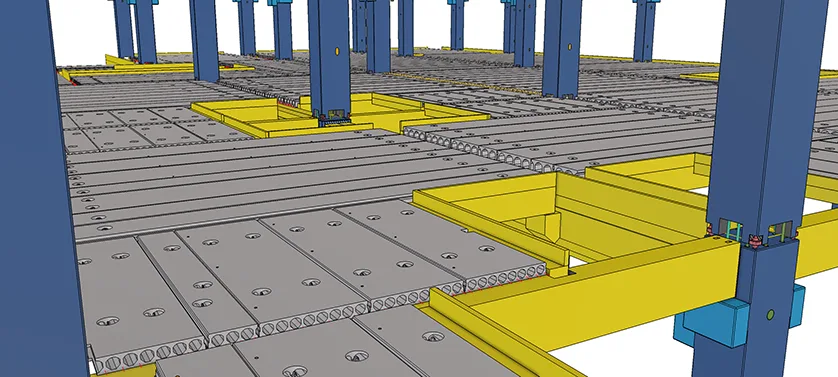

Number of beams: 317 Number of prefabricated columns: 98 Honeycomb slabs: 20,000 m2 Horizontal: 3,528 m3 Vertical: 1,572 m3
Trimble products used
Tekla Structures Trimble Connect Total Station
Project description
This project is the fruit of a partnership between Lyon Parc Auto (LPA), Banque des Territoires, Groupe SERL and La Poste Immobilier.
The urban logistics hotel will cover more than 28,000m², over a third of which will be allocated to La Poste subsidiaries Urby and DPD.
The space is divided over 2 levels, accessible to heavy goods vehicles, and will meet the urban logistics needs of the Lyon conurbation.
The future HLU is fully in line with our commitment to making cities more breathable, by tackling the problem of last-mile deliveries, while respecting La Poste's commitment to introduce gentle delivery methods.
In addition, a photovoltaic power plant with over 15,000 m² of panels will supply power to buildings that meet the highest environmental standards, with HQE certification at the excellent level.
Challenges to meet
Huge Trimble connect advantage: data exchange with manufacturer, fitter and site supervisor; efficient use of drawing box.

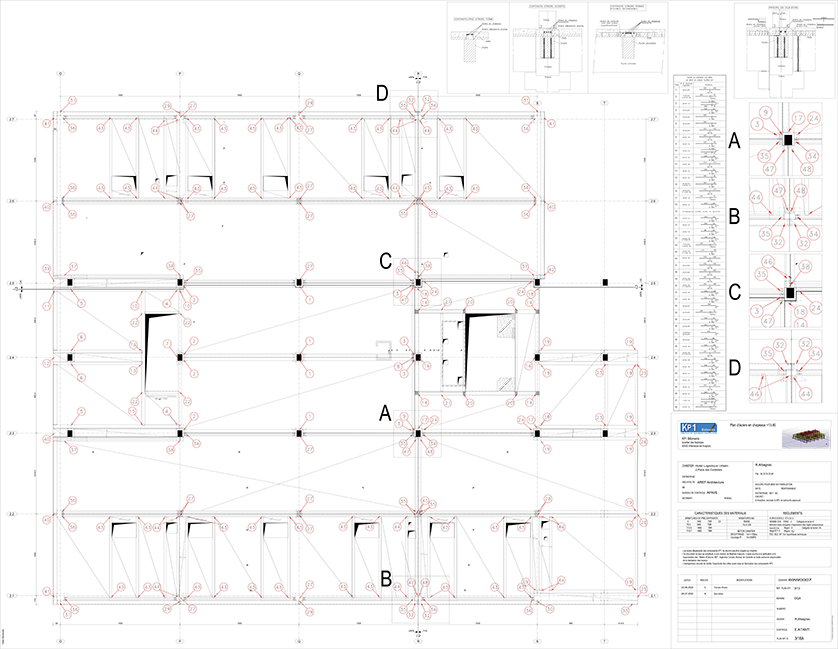

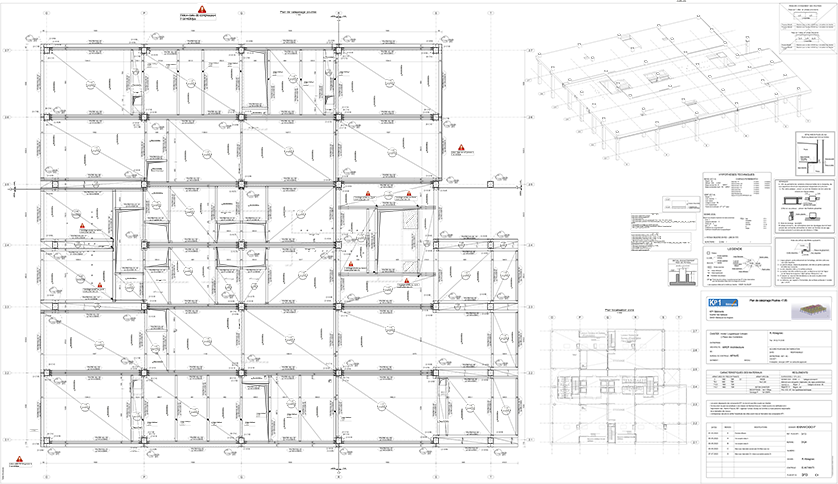

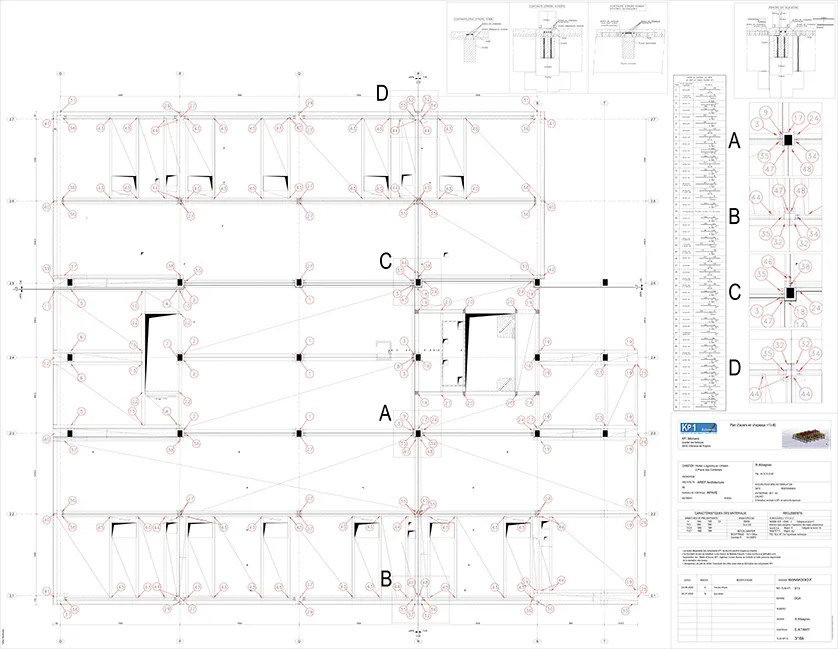

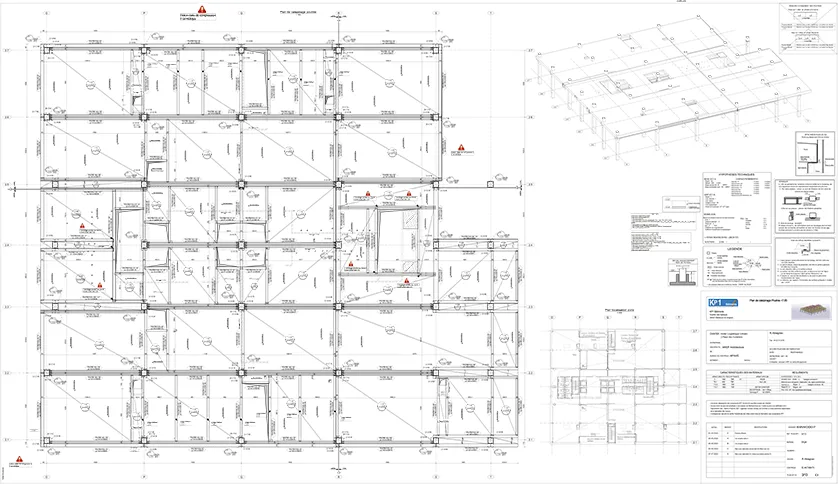

Linking Tekla manufacturing drawings to the Trimble Connect model.
On-site 3D surveys with Trimble Total Station and 3D model link.

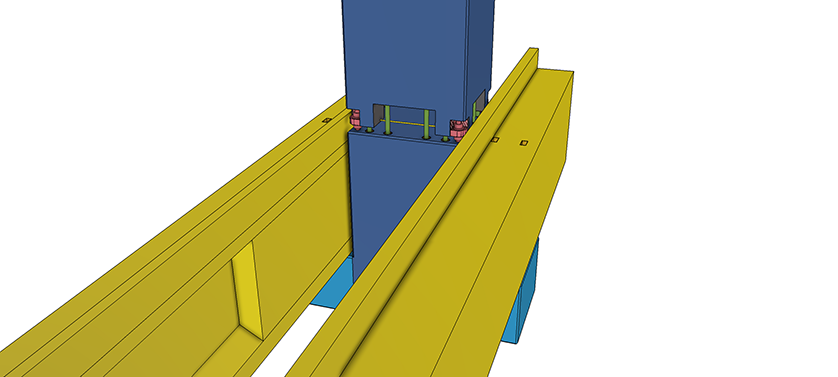

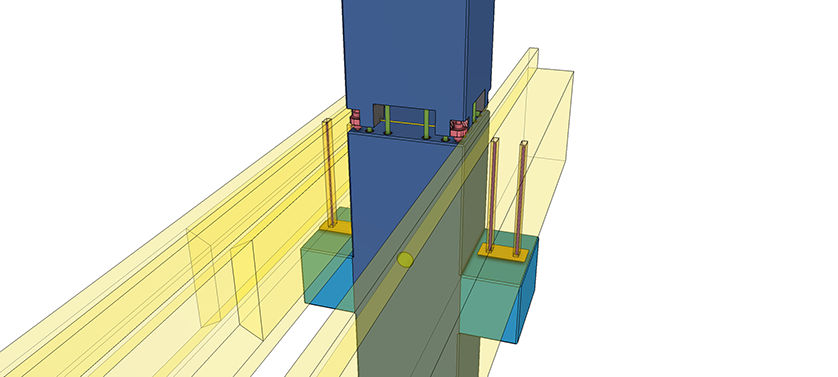

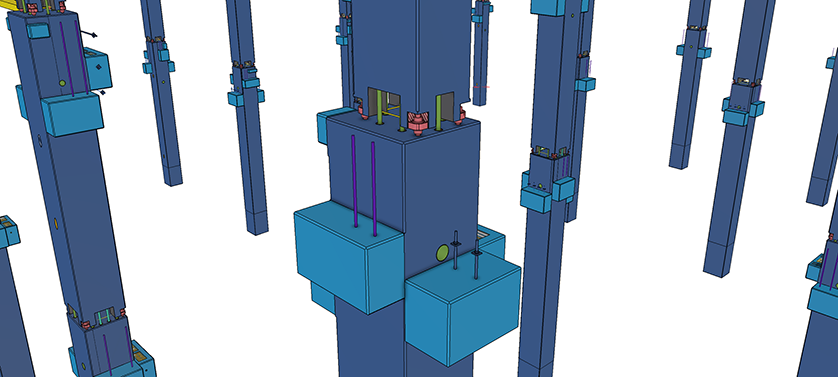

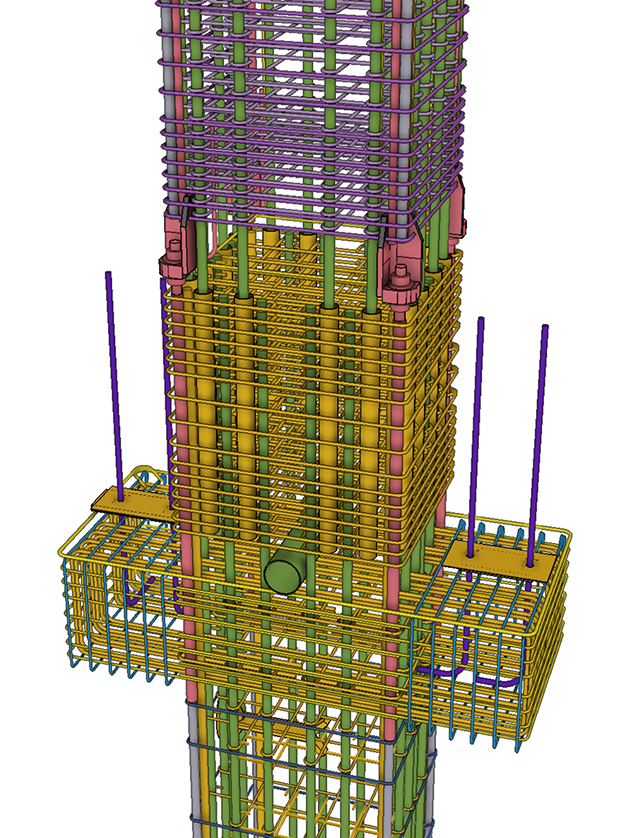

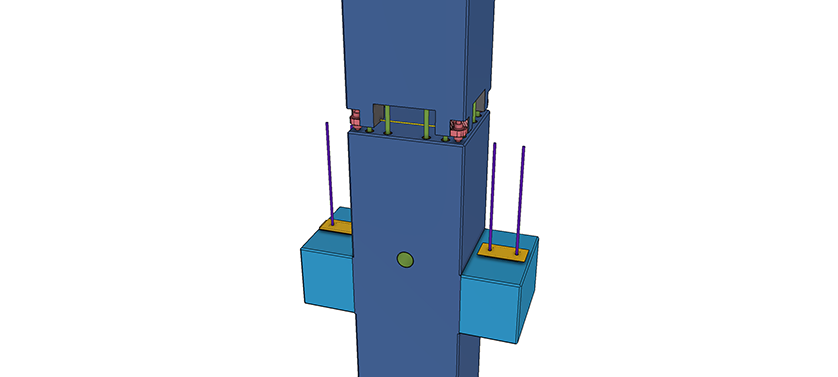

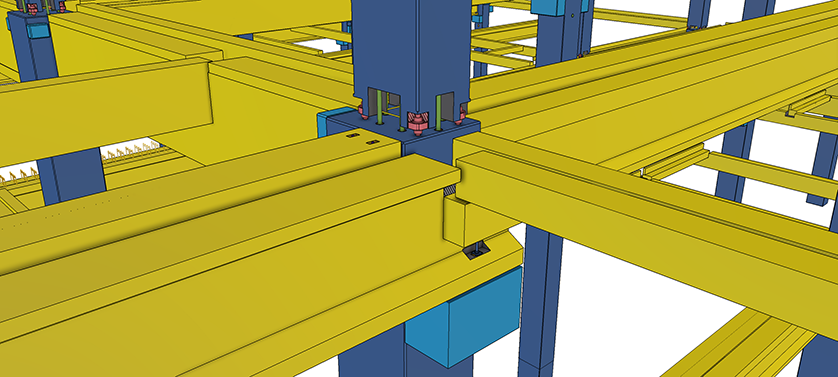

The 3D model was used to set the connections between posts and PEIKKO inserts.
"I'm particularly proud to have succeeded in this project, which represented a challenge for the company."
Main role of KP1 BATIMENTS
Design office during the execution phase
