Category: Industrial Project Project name: SMR DU MÉTRO GRAND PARIS Company: OMS Project location: VITRY (94), France

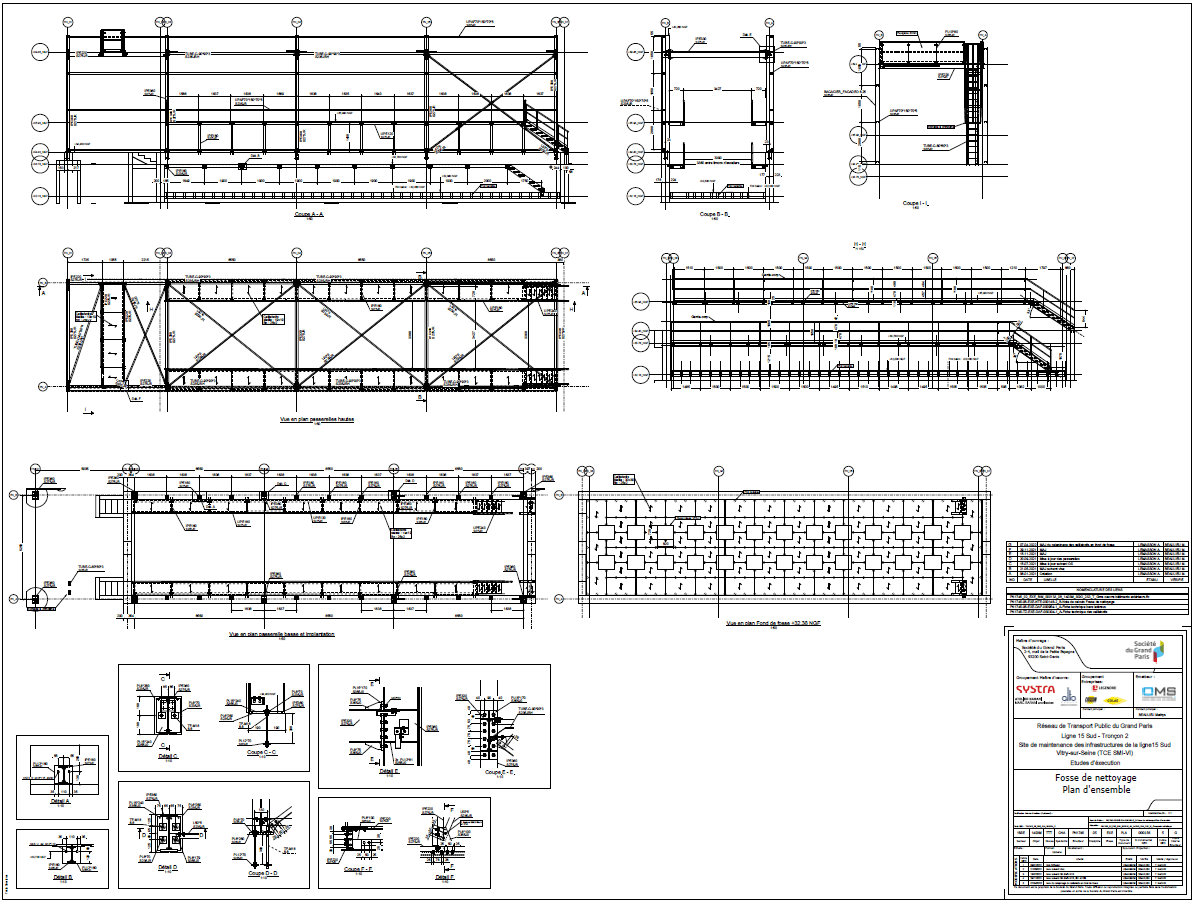

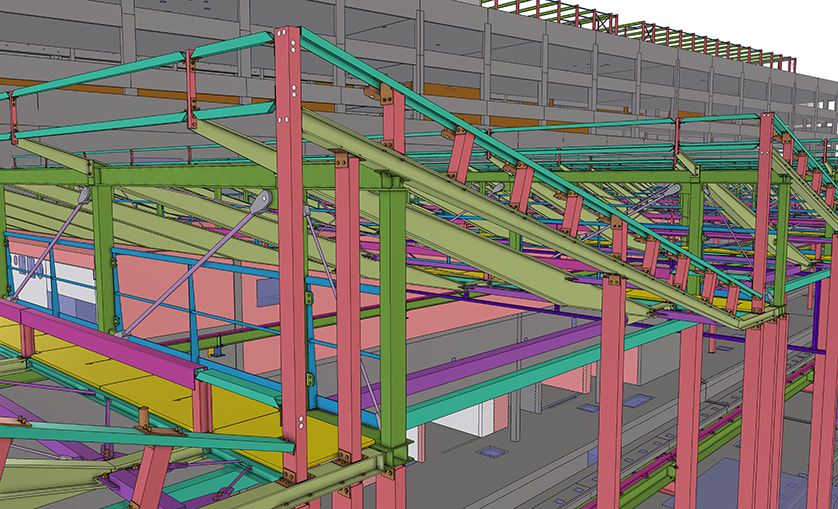

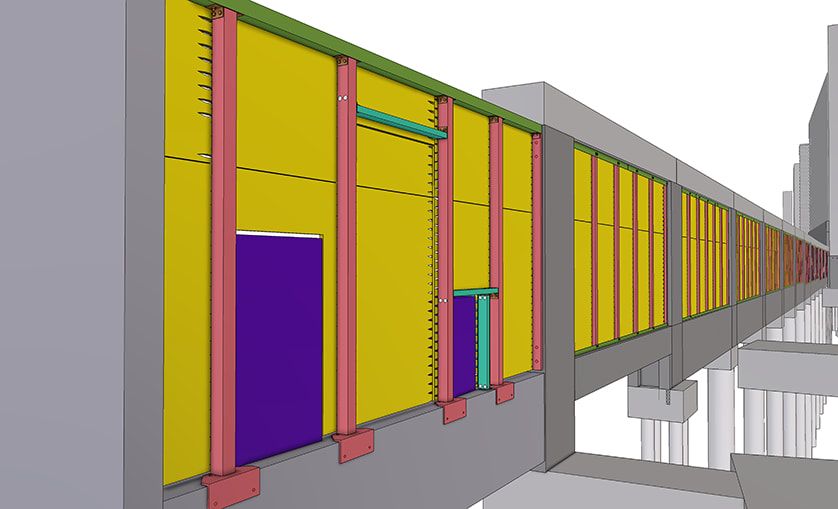

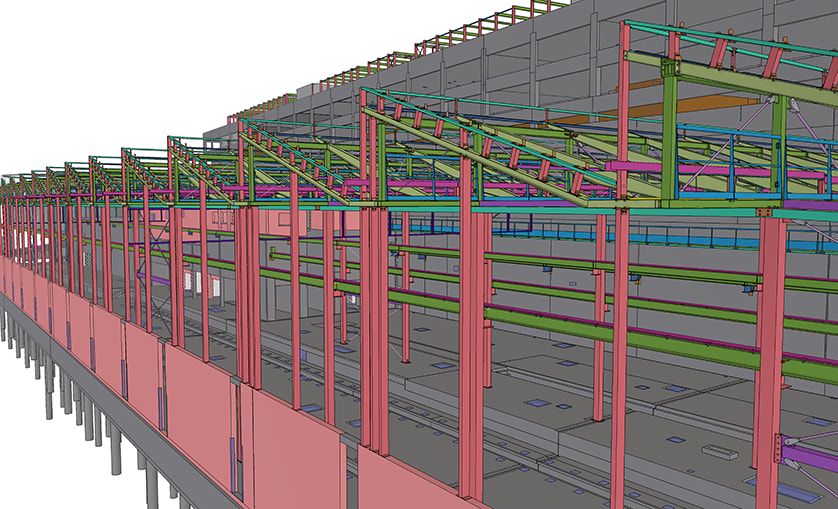

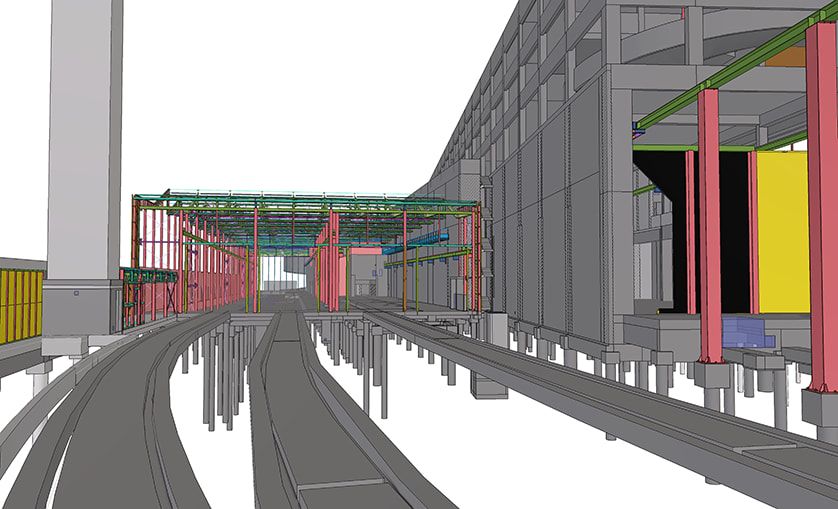

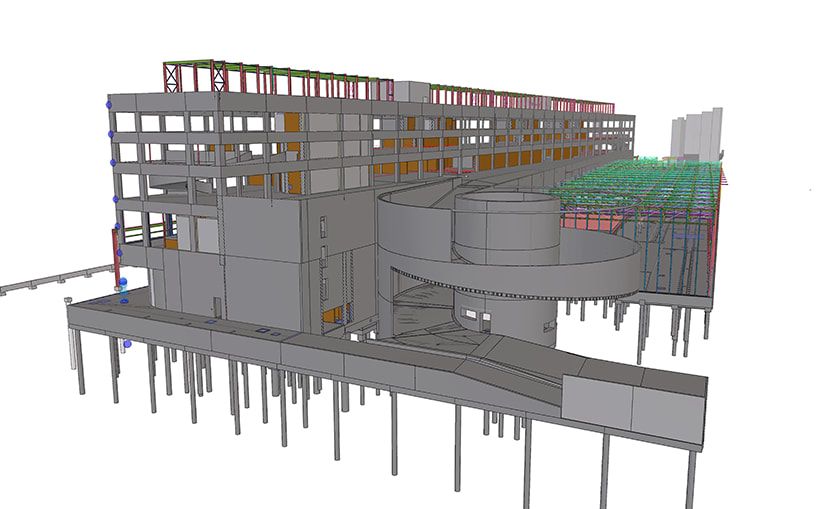

The project in pictures
The project in figures

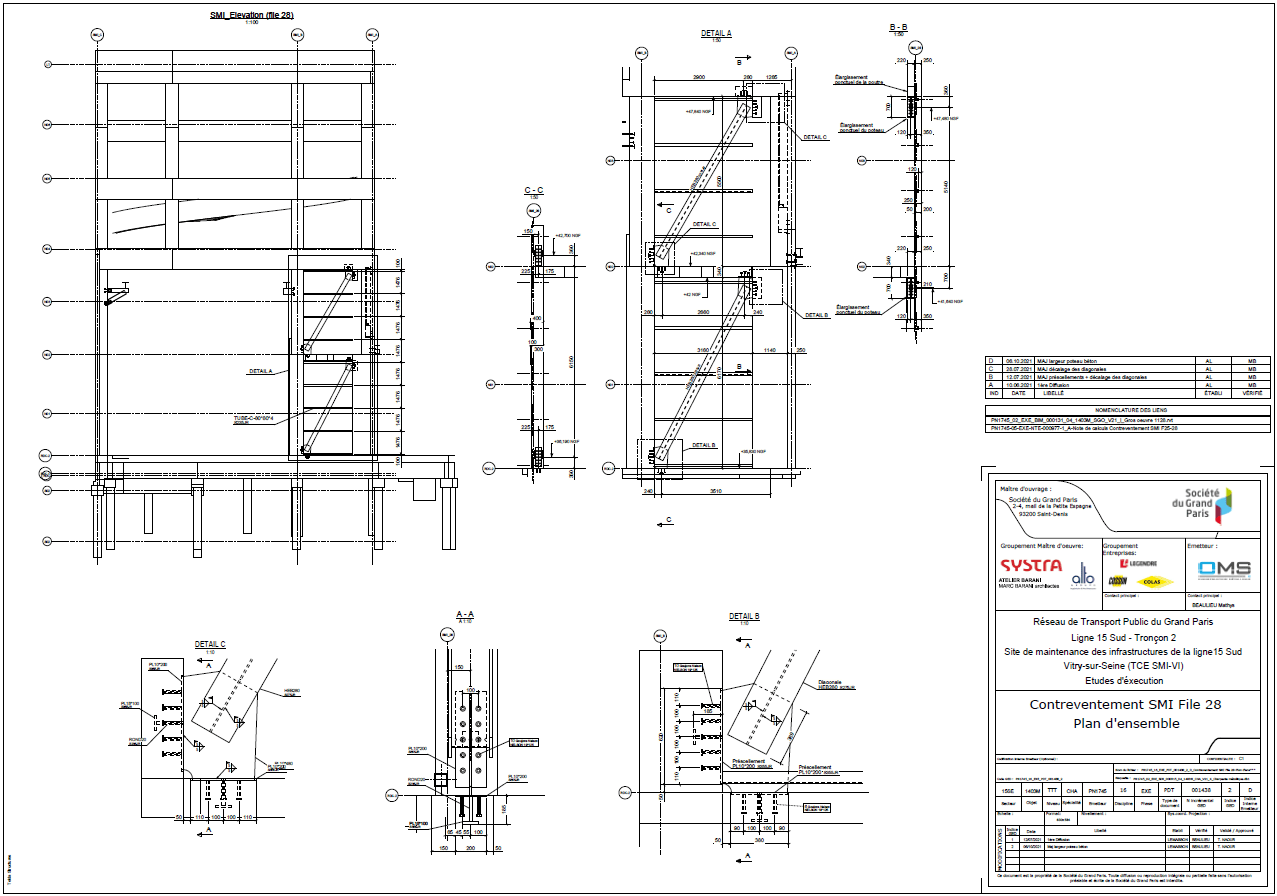

Structural steelwork: 5 buildings and numerous ancillary structures (indoor/outdoor overhead crane structures, fencing, monumental door frame, equipment rooms, running rails). Steel: 750 tons Number of parts: 4,700 Number of bolts: 2,700 VMI (secondary structural building): 28m x 150m x 13m (Ht) 18 sheds composed of lattice girders spanning 28m integrating technical walkways + overhead crane Calculations: 1,600 hours Drawings: 2,500 hours Workshop: 12,000 hours Number of fabrication files: 50 Number of production drawings: 3,750 Number of overall drawings: 110 Steel: 750 tons Number of parts: 4,700 Number of bolts: 2,700
Trimble products used
Tekla Structures Tekla Model Sharing
Project description
Maintenance and storage site for the Grand Paris metro.
Challenges to meet
Many interfaces with the shell and with a multitude of technical lots
Reactivity in the design and production phases throughout the project.
Complex project phasing/timing with all lots.
OMS's main role
Builder / Manufacturer
