About the project
Category: Industrial Project Project name: PONT COLBERT Company: LOCAPAL Project location: DIEPPE (76), France
The project in pictures
The project in figures
Length: 45 m² Weight: 210 tonnes (against comris weight)
Trimble products used
Tekla Structures Tekla Model Sharing
Project description

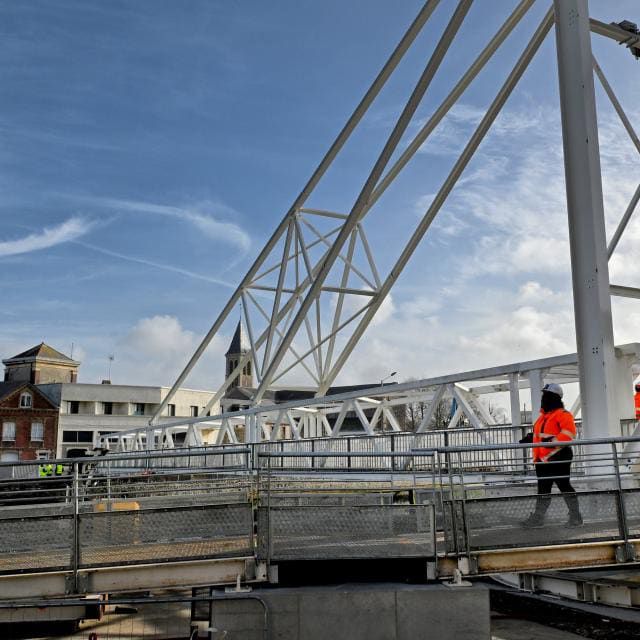

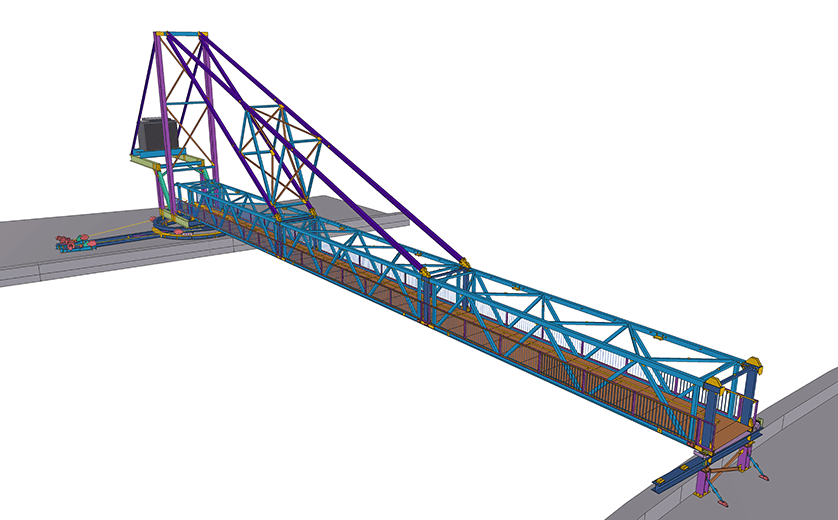

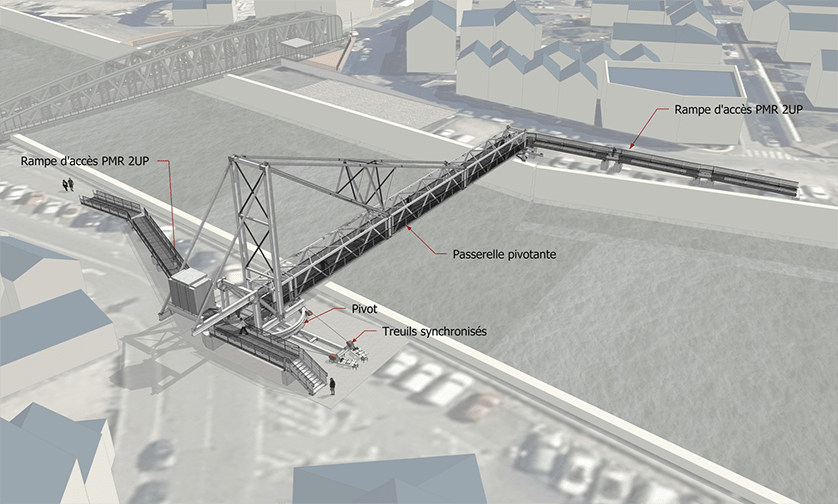

Creation of a rotating pedestrian footbridge during renovation of the Colbert swing bridge.
Challenges to meet

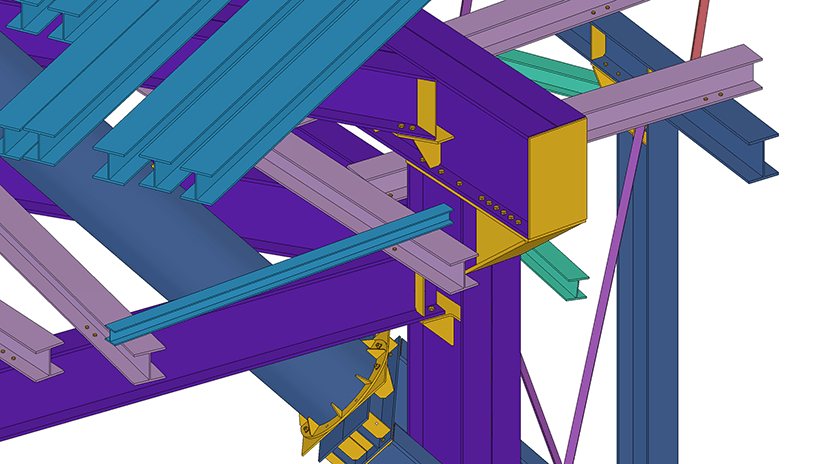

Complexity of assembling several locapal "standard" items together to achieve a length of 45m

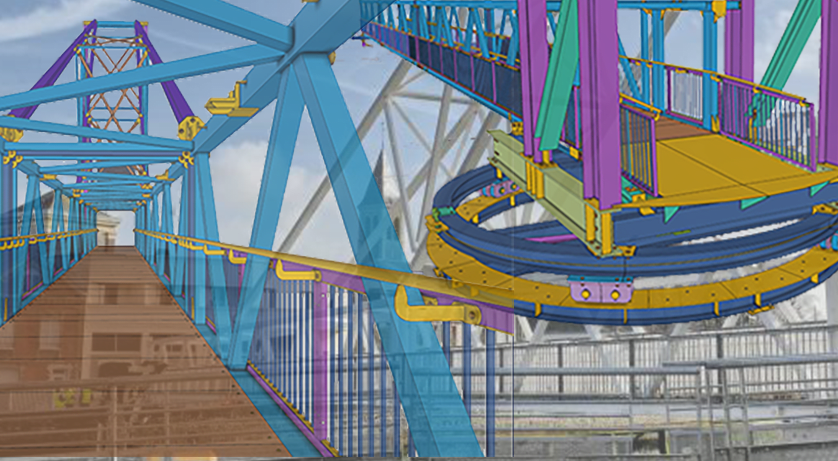

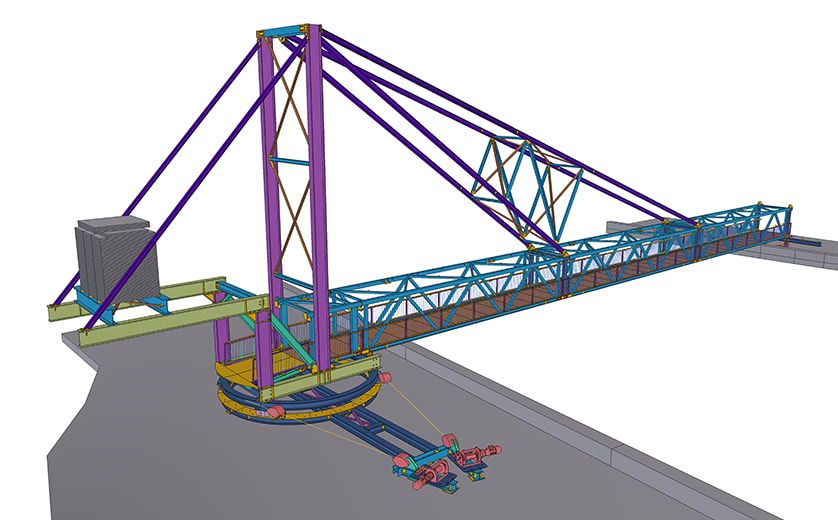

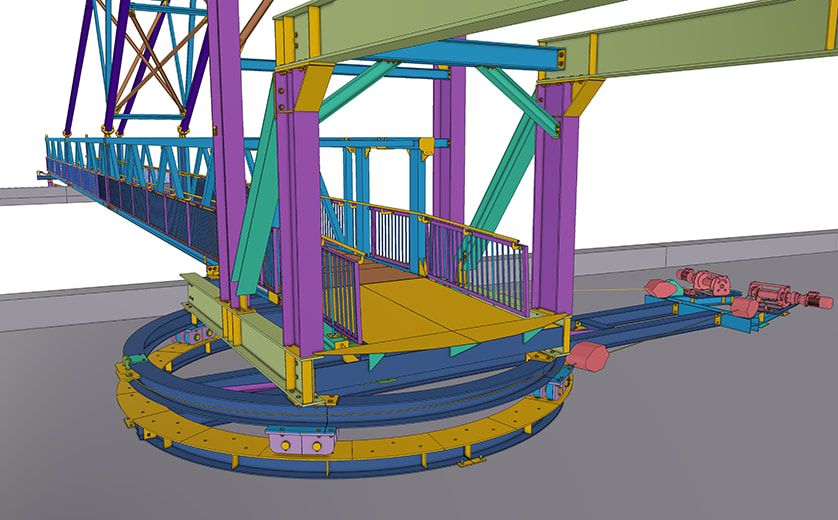

Creation of new elements to allow the bridge to rotate

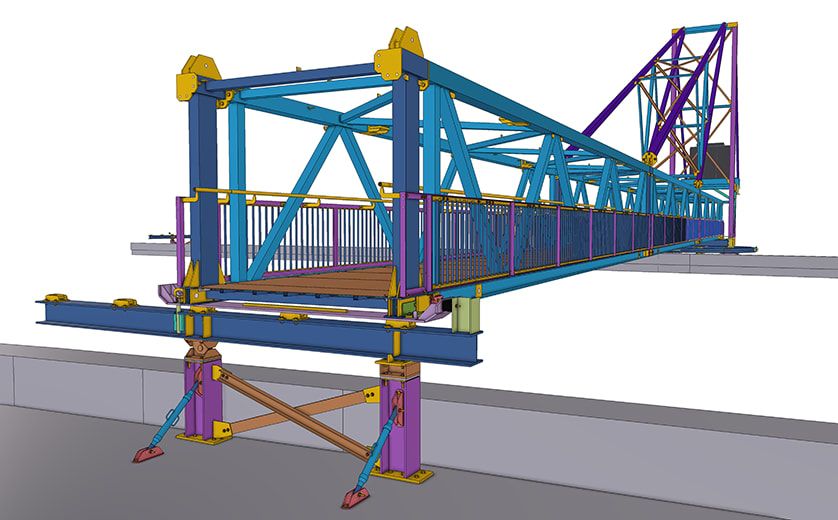

Counter-sweep at the end of the gangway to reach the correct level on the other side of the harbour

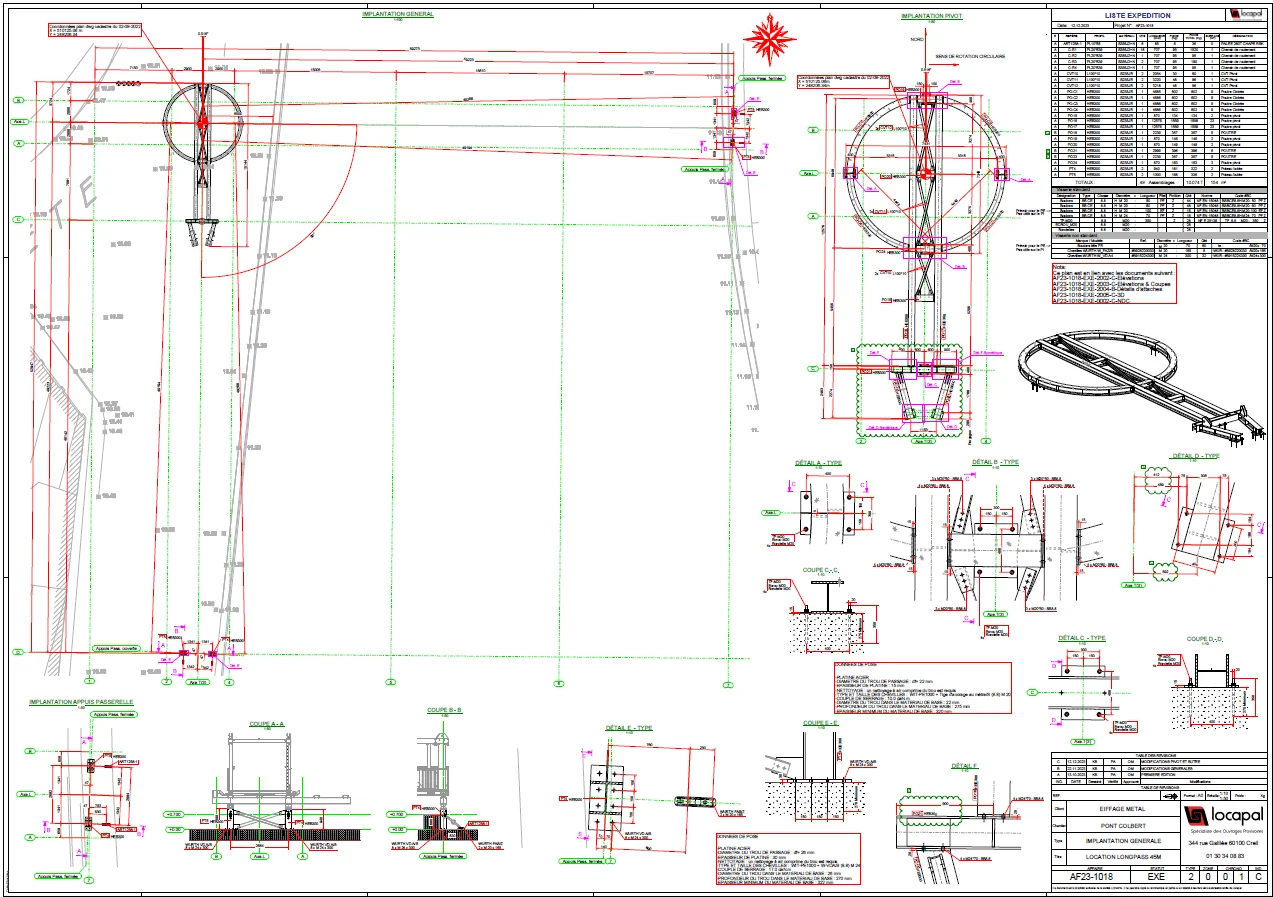

Use of numerical controls to cut plates and profiles, with marking to facilitate assembly.
LOCAPAL's main role
Builder / Manufacturer
