About the project
Category: Tertiary HVAC-Elec. project Project name: G.S LOUISE MICHEL Company: AQUATAIR Project location: ANEMASSE (74), France Client: Ville d'Annemasse Architect: NUNC Architectes B.E Fluides: EPCO Energies

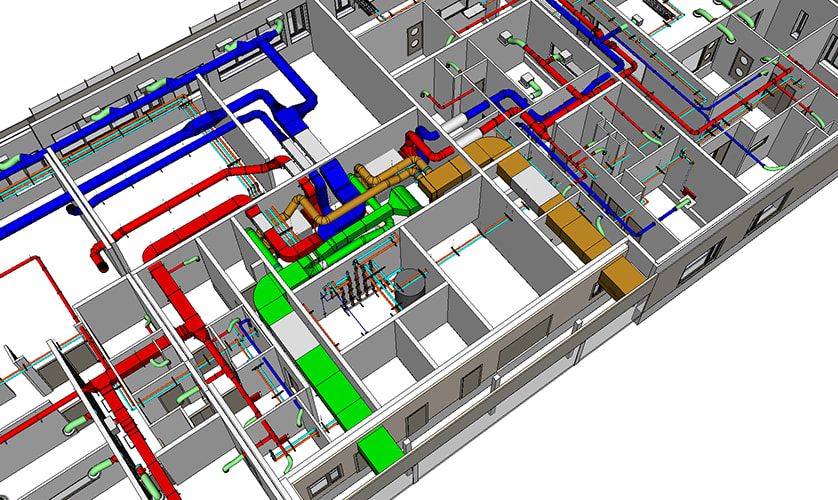

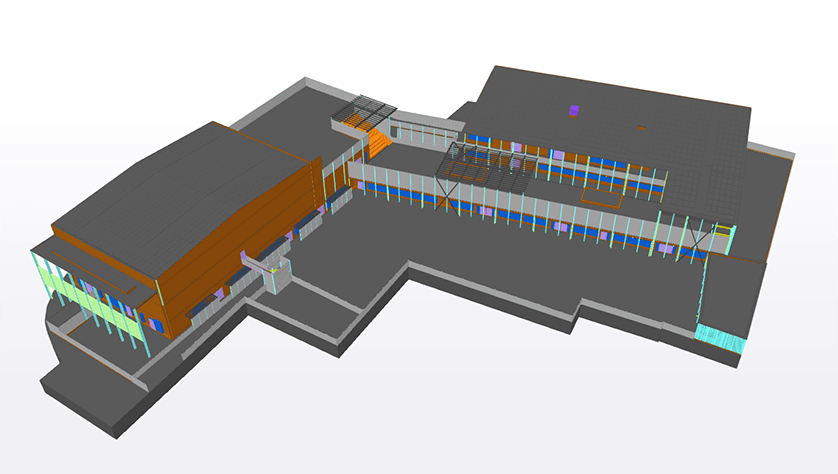

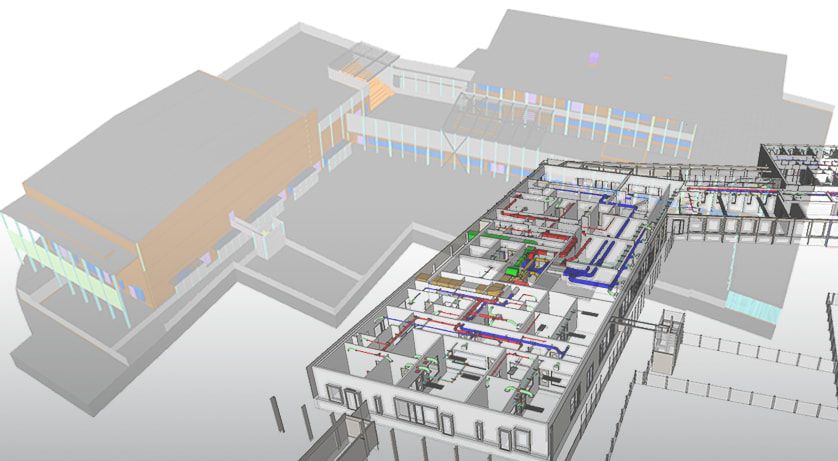

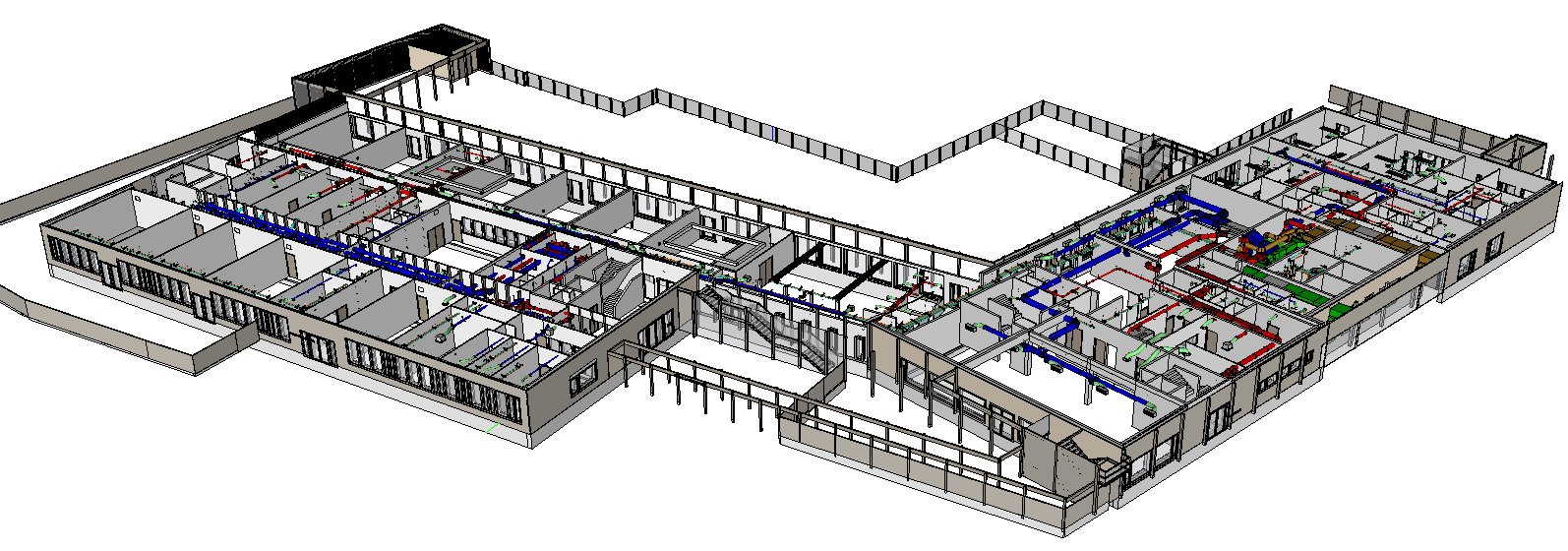

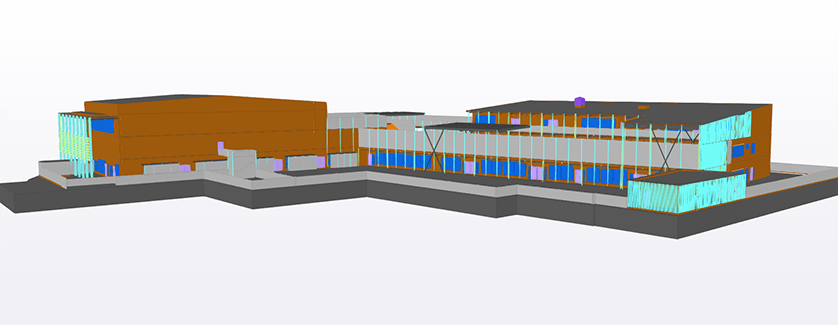

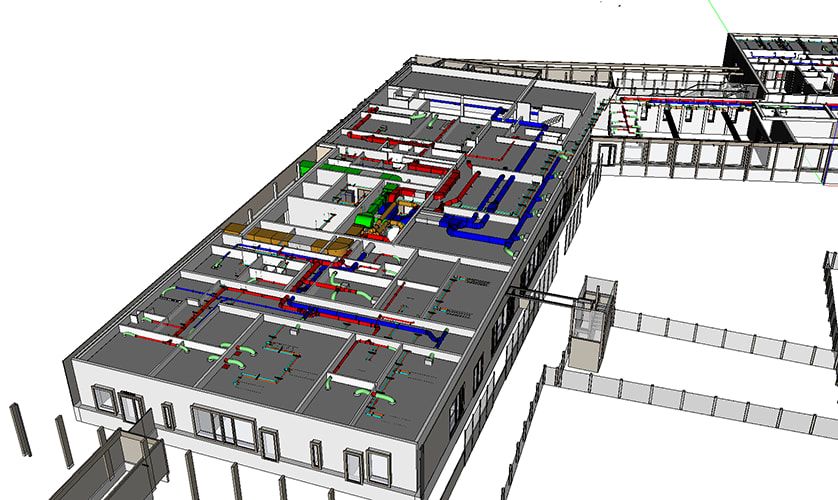

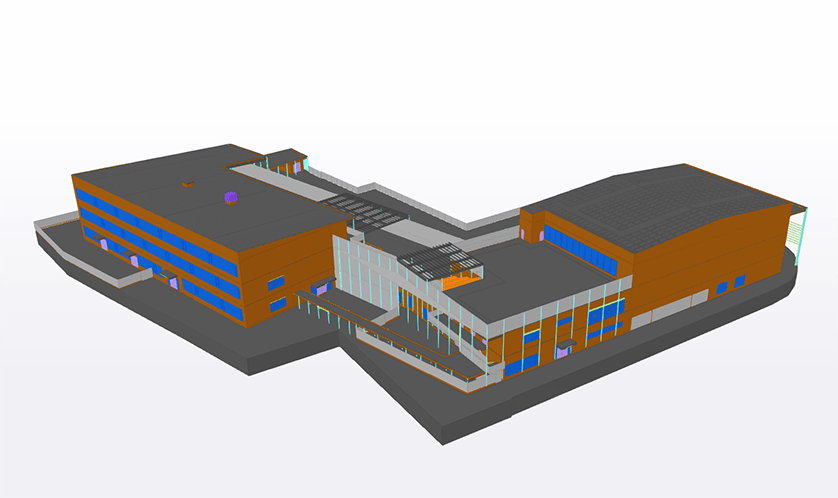

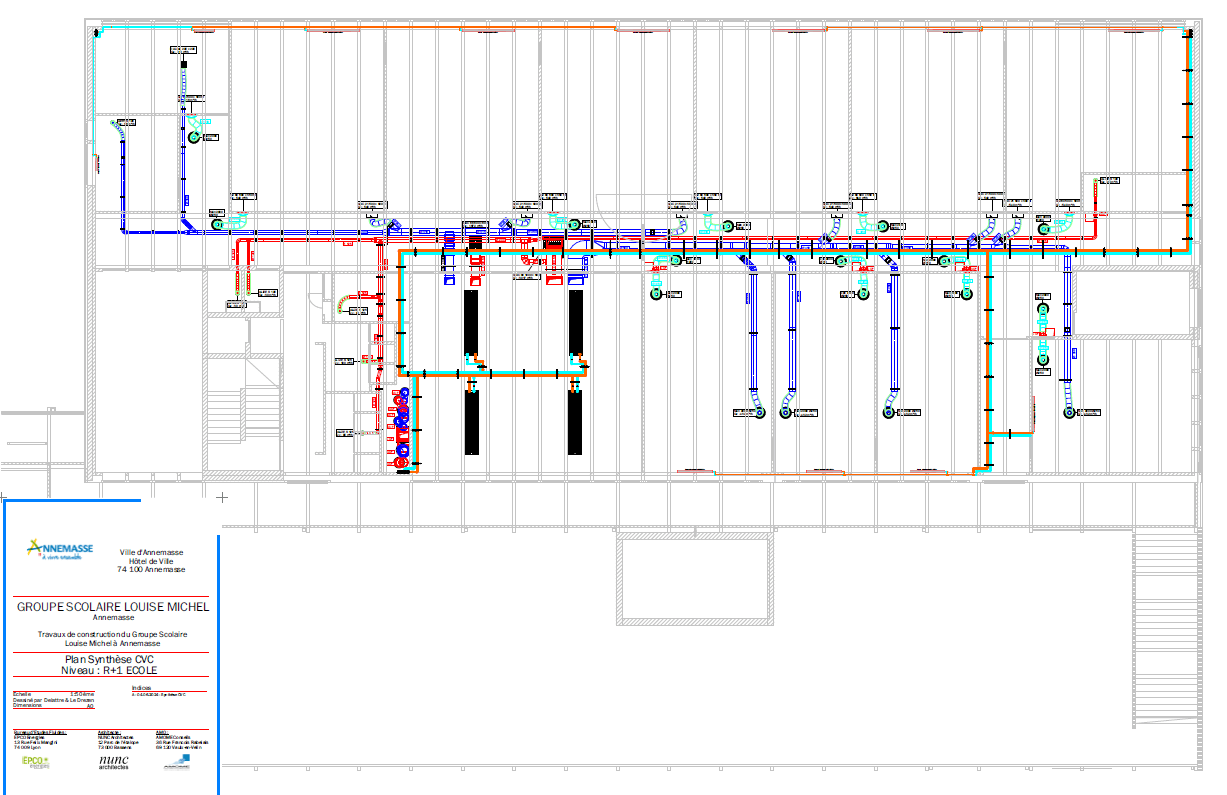

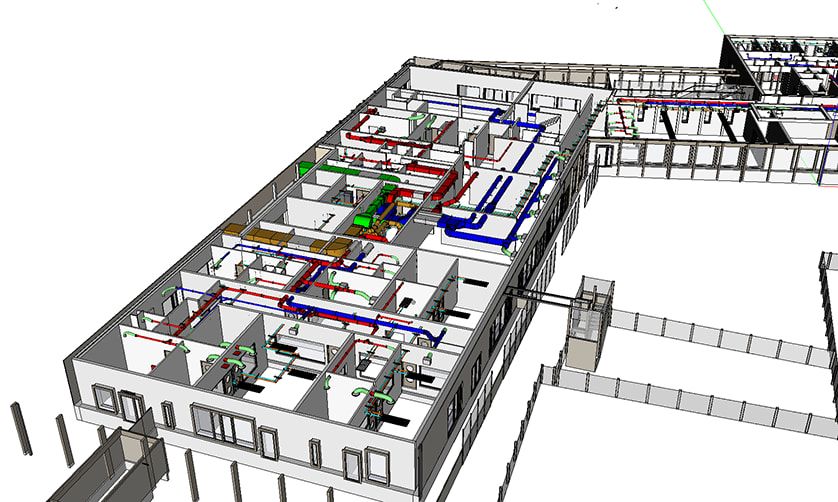

The project in pictures
The project in figures
Surface area: 5,968.23 m² Cost of HVAC work: 1,679,615.09 Euros incl. VAT for the HVAC package
Trimble products used
Trimble Nova Trimble Connect
Project description
This project involves the construction of a new school complex to accommodate children from kindergarten to primary school. It also includes a crèche and a gymnasium. It is being built within the framework of the city of Annemasse to meet the growing needs of our department.
The school complex was designed to be a PASSIVE building. From its composition to its structure (specific concrete to respect passivity), internal partitions made of terracotta, also a wooden architecture for the floors as well as the floors between levels.
Our ventilation and heating package has been designed to meet the standards of a passive building. For heating, we use a heat pump coupled with geothermal energy. Our heating networks are low-temperature, and we supply low-temperature community radiators, radiant panels and hydraulic coils for the air handling units. This heating network is reversible, which means we have to comply with the appropriate insulation class.
Our company has been selected to supply the HVAC package.
We are in charge of sizing, layout and positioning all HVAC equipment, as well as finding the best technical solution.

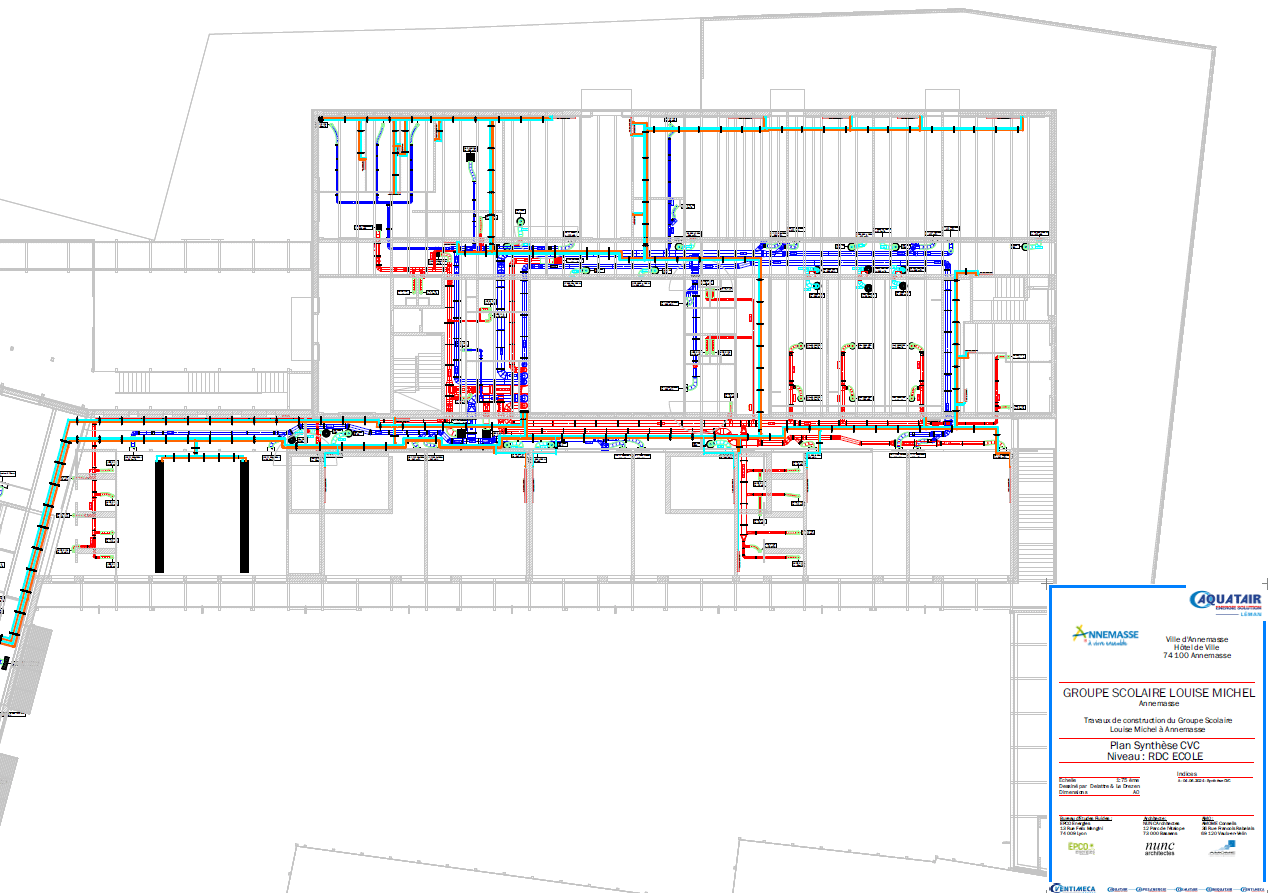

Produce working drawings and schematics
Challenges to meet
Compliance with Passivhauss certification
E4 C2 carbon footprint < 750 kgCO2/m2SP.an
Geothermal energy
Environmentally-friendly worksite with reduced traffic and paper documents
3rd category ERP building with type R, N and X activities as defined by fire regulations
AQUATAIR's main role
Execution/Installation
