About the project
Category: Commercial Project Project name: FNTR Company: WILLY NAESSENS Project location: WANCOURT 62128, France

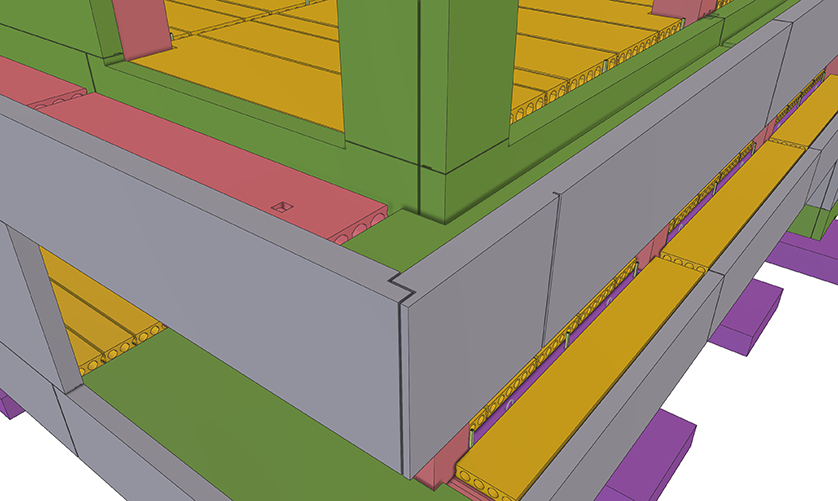

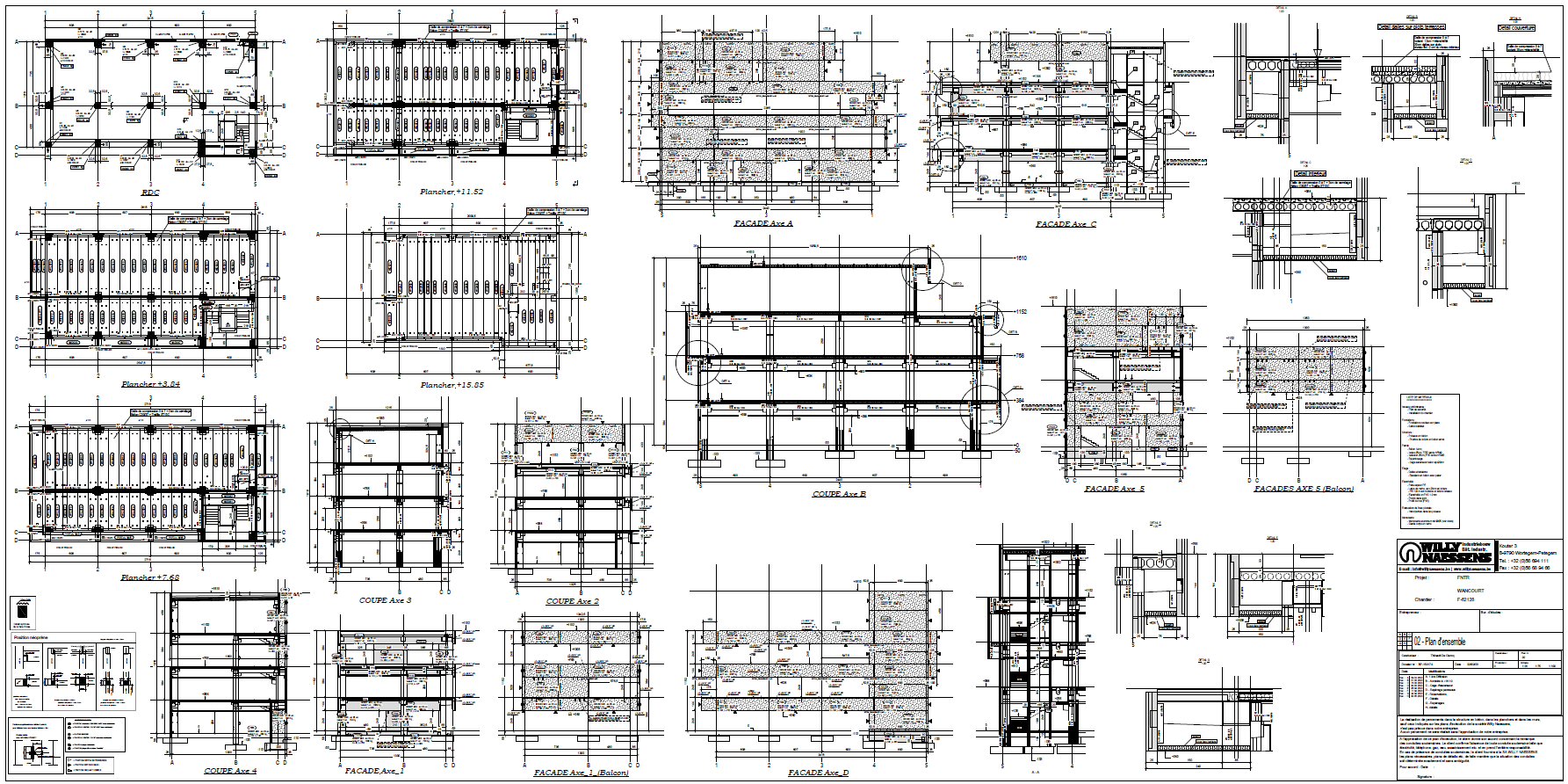

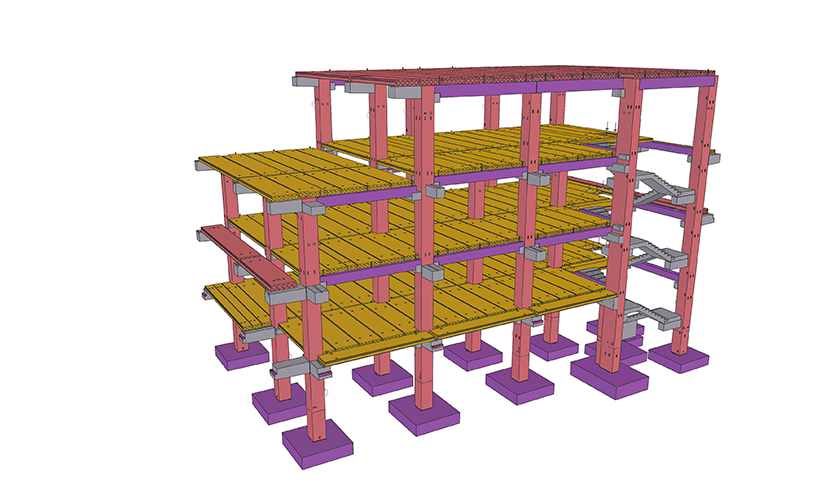

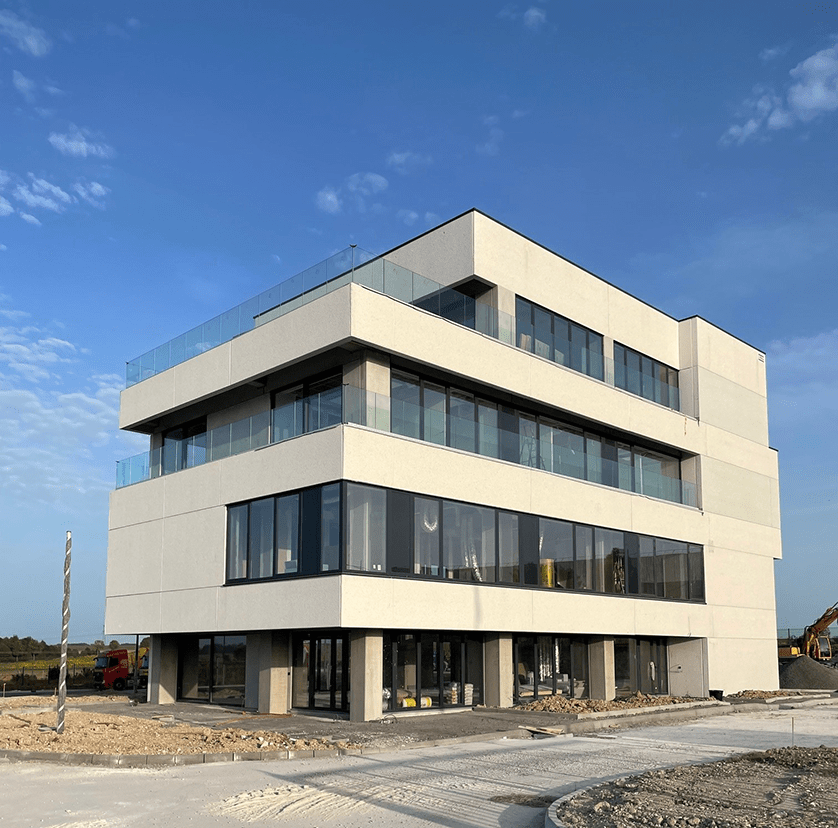

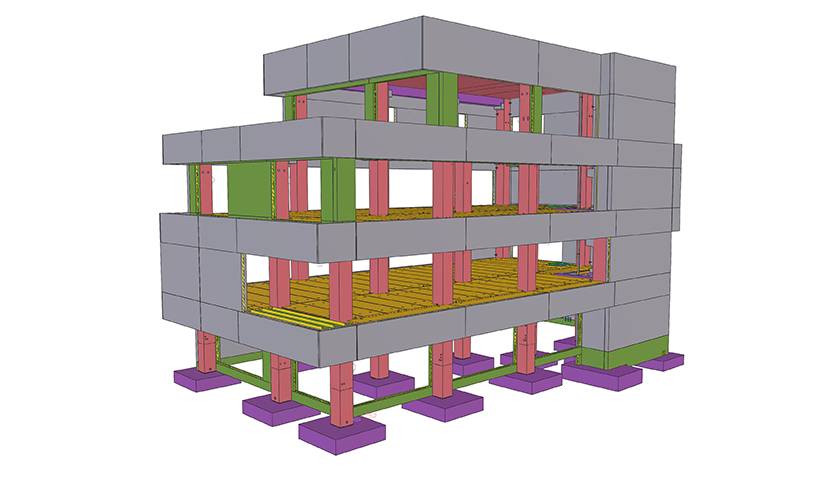

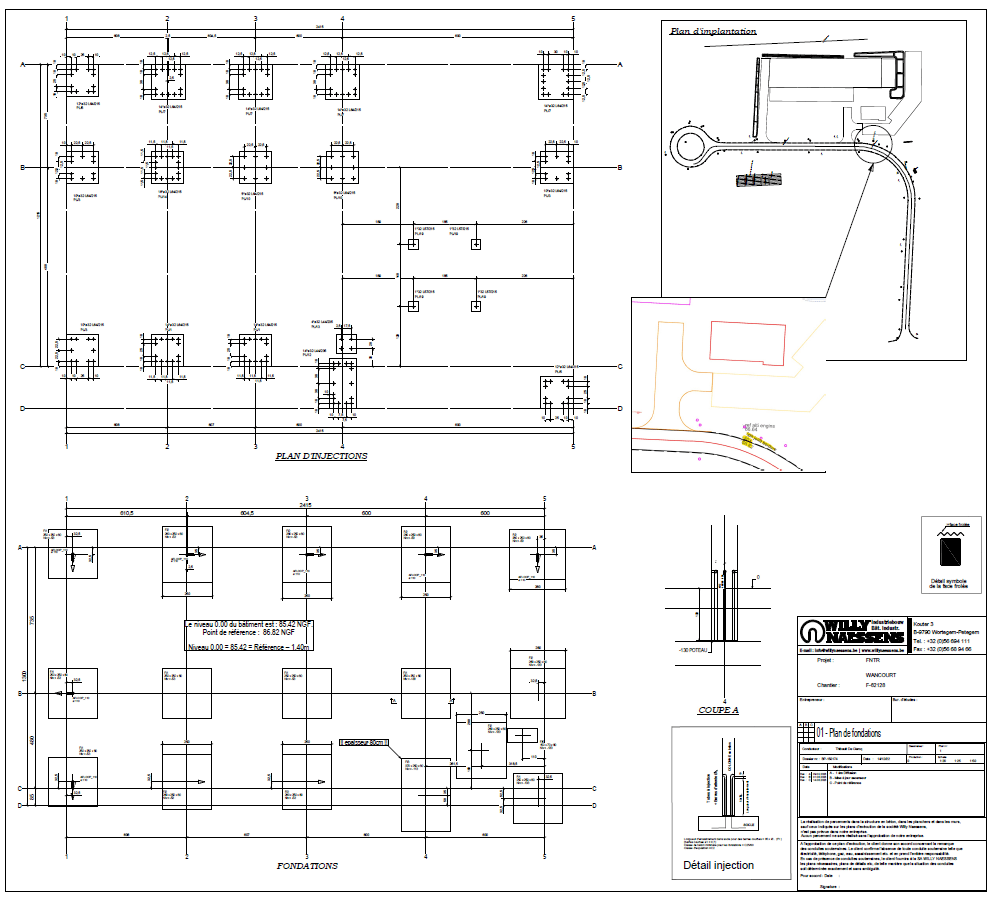

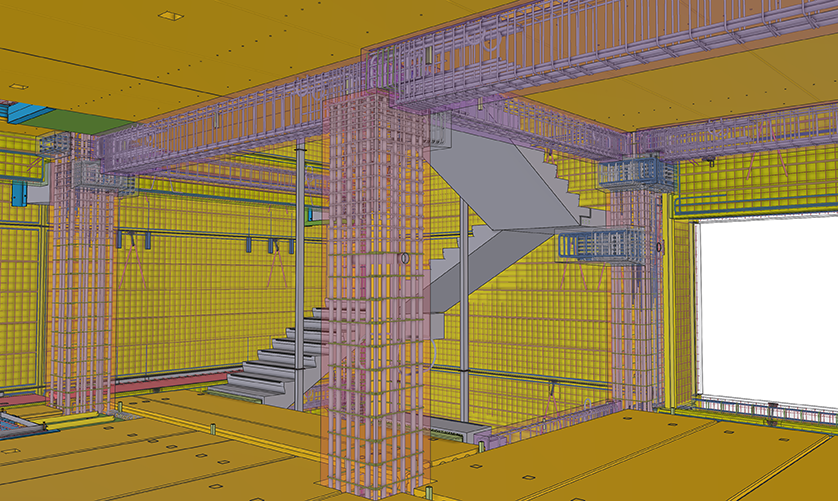

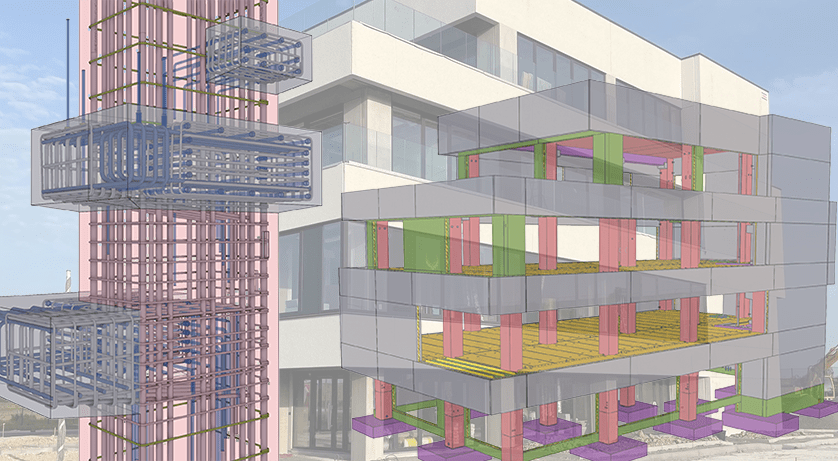

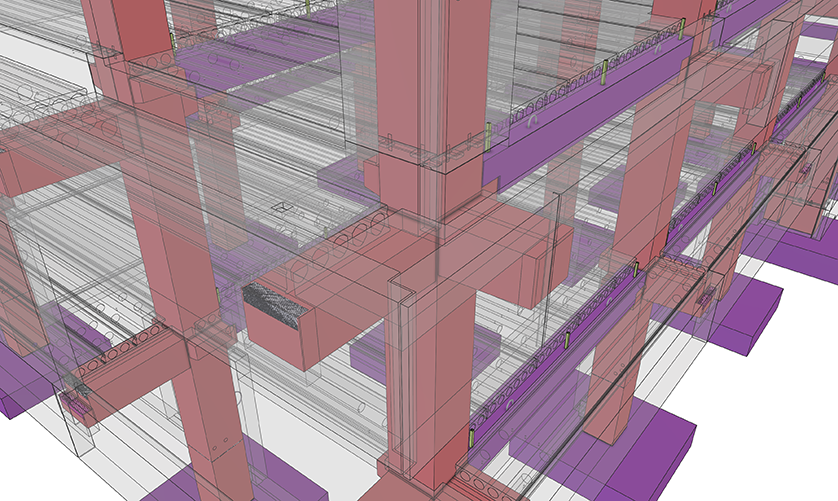

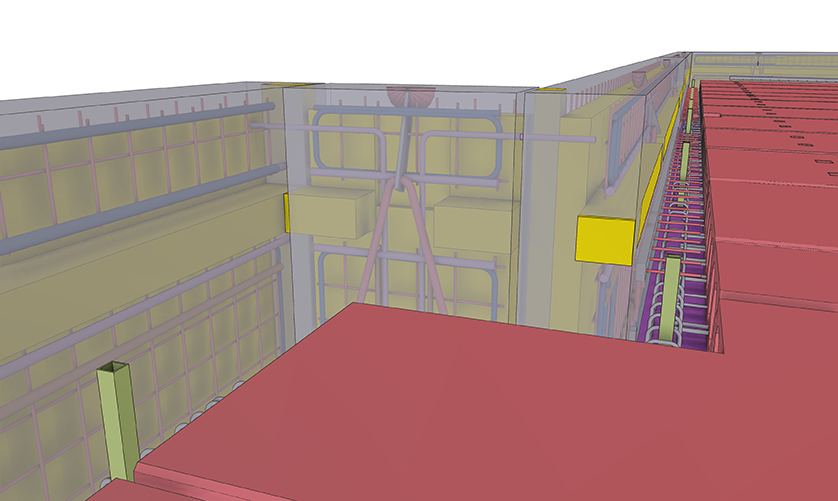

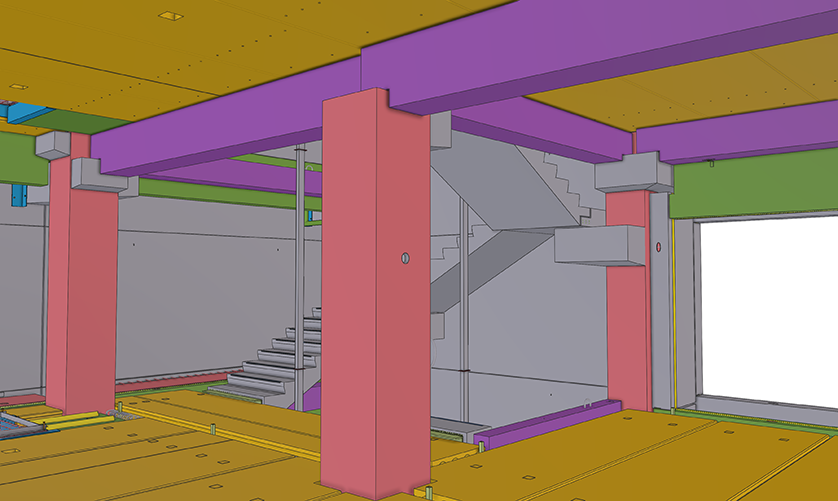

The project in pictures
The project in figures
Floor area: 288 m² Floor area: 1,060 m² Roof area: 267 m² Reinforced concrete columns: 16 Reinforced concrete beams: 45 Panels: 131 Alveolar slabs: 1,320 m² Elevator shaft: 1 Stairs: 9 Concrete: 551 m3 Reinforcement: 71 tonnes
Trimble products used
Tekla Structures Trimble Connect
Project description
The Chambre Syndicale des Transports Routiers du Pas de Calais is planning to build offices and a truck base in the commune of WANCOURT 62128
Challenges to meet

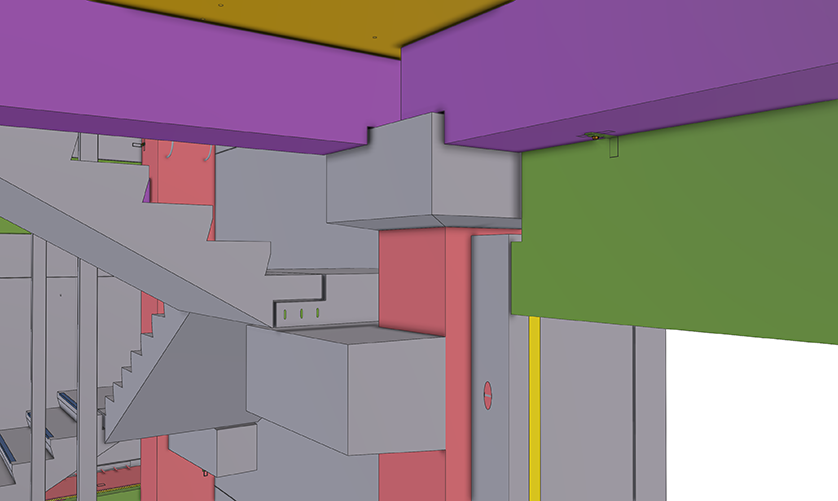

Create complex columns with brackets to accommodate large overhangs.
Guarantee low deformation of components.
Organize the assembly order.
Lead role of WILLY NAESSENS
Reinforcement draftsman / fabricator
