About the project
Category: Infrastructure Project Company: INEXOM Project Location: RHINAU, France
Groupement titulaire du lot GĂ©nie Civil :
Vantry & hoisting equipment: MaĂŻa Sonnier - MaĂŻa Fondations - LĂ©on Grosse Customer: EDF, financed by the France Relance plan and the NextGenerationEU European recovery plan
The project in pictures
The project in figures

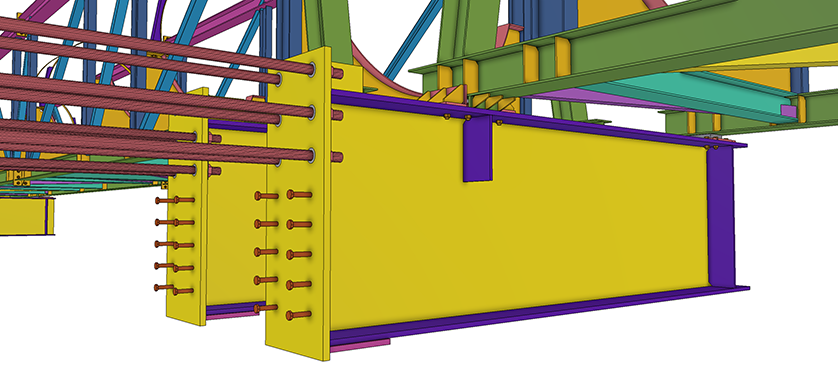

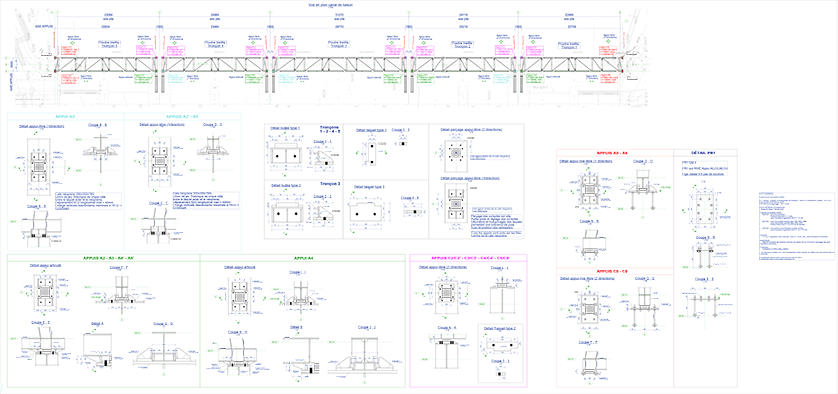

Lattice girders: approx. 3.3 m high and 3.3 m wide (80t) Consoles (25t) : - PRS height 1,300 mm length 4,500 mm 6 SAS 950/1050 rods diameter 47 mm + 10 weld studs diameter 25 mm per anchor 5 isostatic spans (23 m to 31m) supported by 2 abutments and 4 consoles on piers GRP pipe: 21 sections approx. 6 m long and 2.4 m in diameter for 4.7 t piece
Trimble products used
Tekla Structures Tekla Model Sharing Trimble Connect
Project description

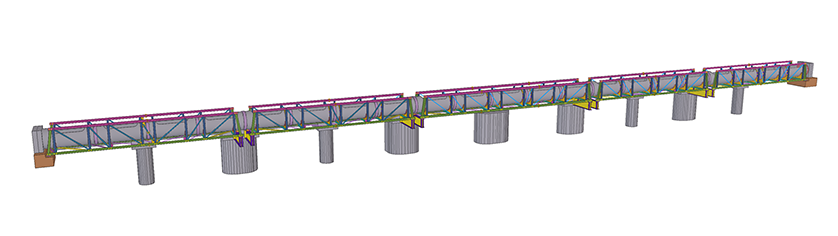

Steel structure supporting a 2.4 m diameter GRP (Glass Fiber Reinforced Polymer) pipe for the left bank - right bank connecting channel of the Rhinau fish pass (67).
European project to restore fish continuity between the North Sea and the Schaffhausen Falls (Switzerland).
Total length of steel structure: 128 m Function of structure :

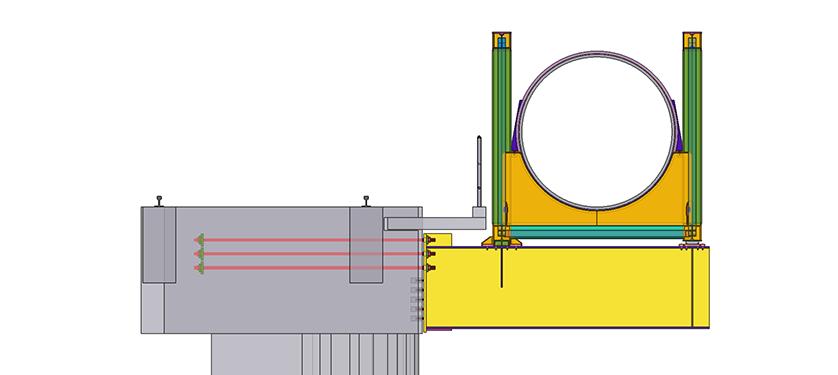

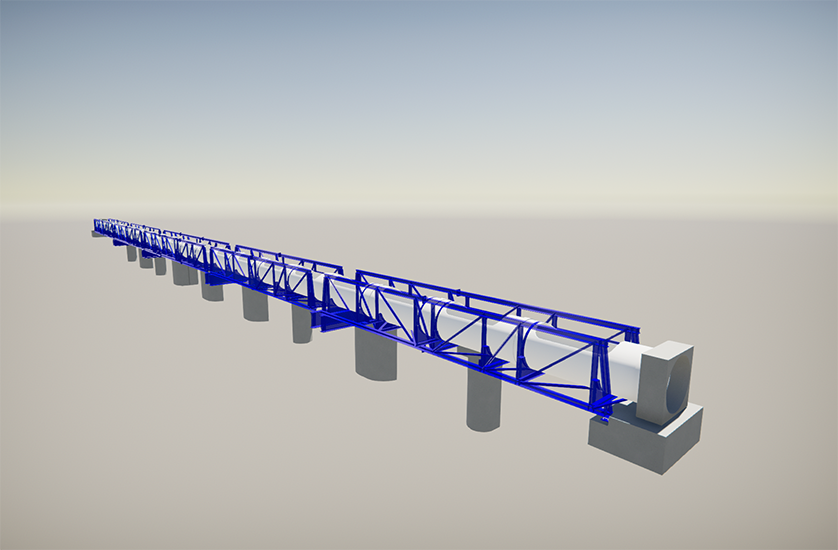

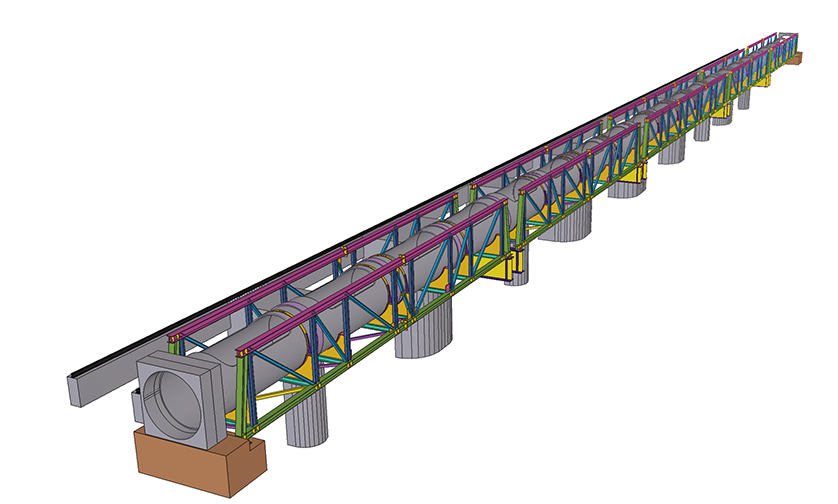

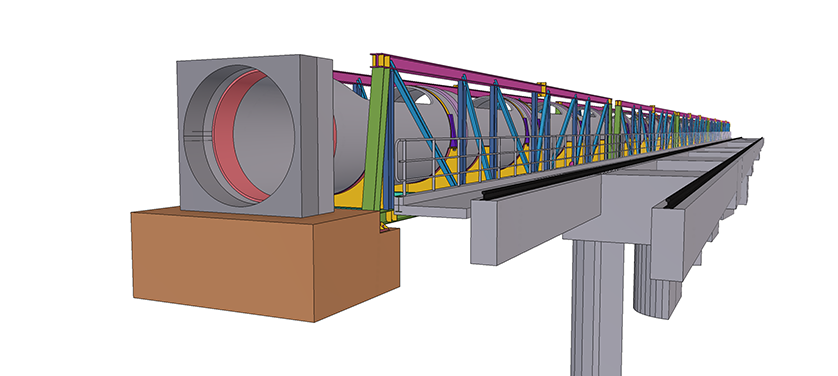

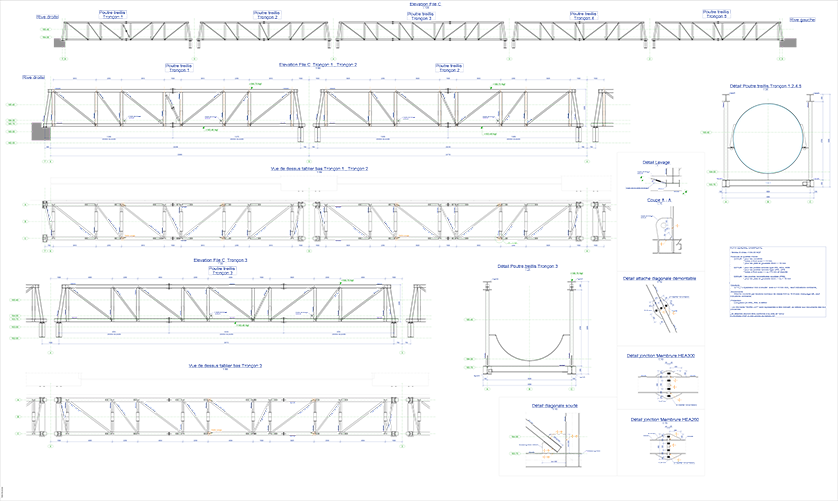

2 vertical lattice girders and 1 horizontal lattice girder forming a U with uprights spaced according to GRP supports

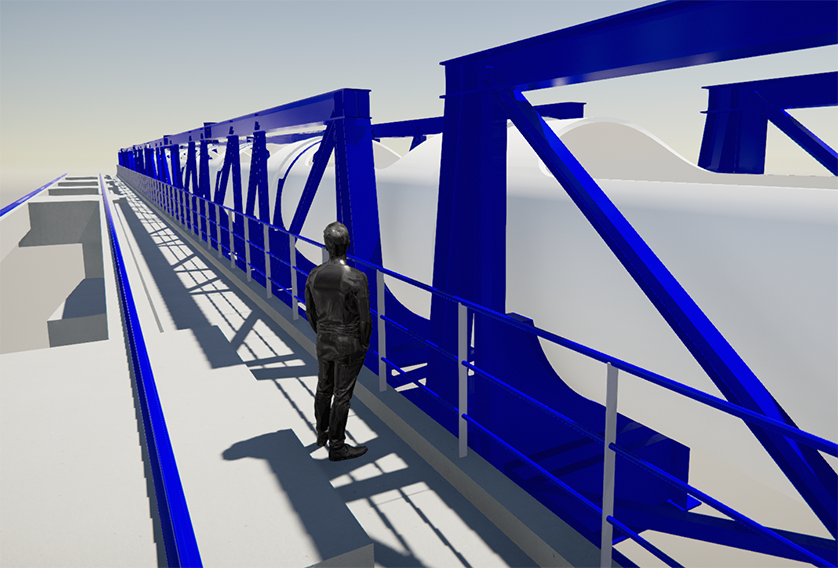

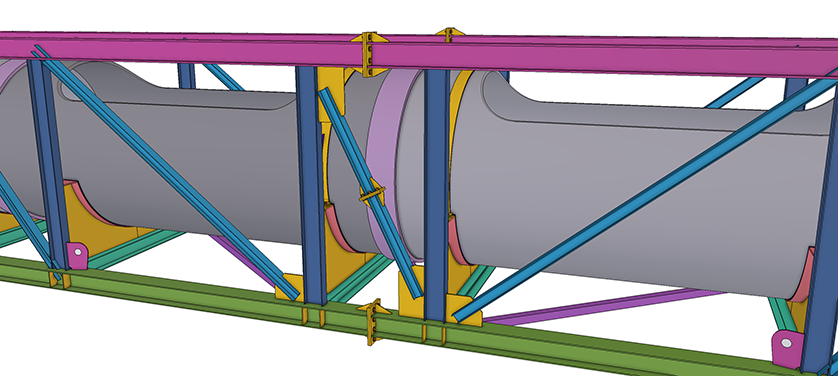

GRP cradles to prevent buckling of top chords

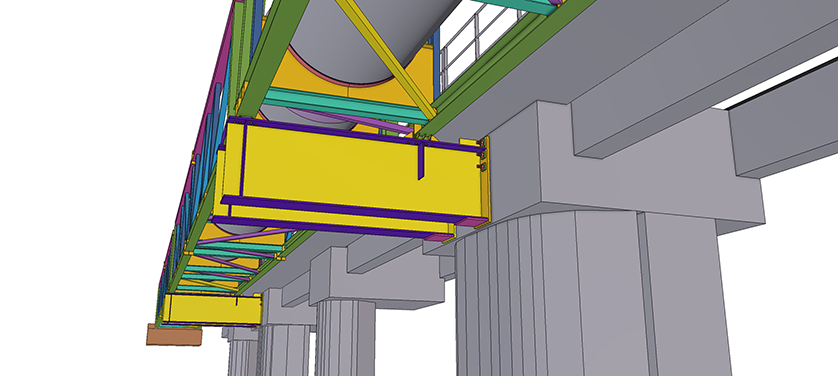

2 supports on metal brackets at each end of the trusses
Metal brackets in line with each stack
Challenges to meet

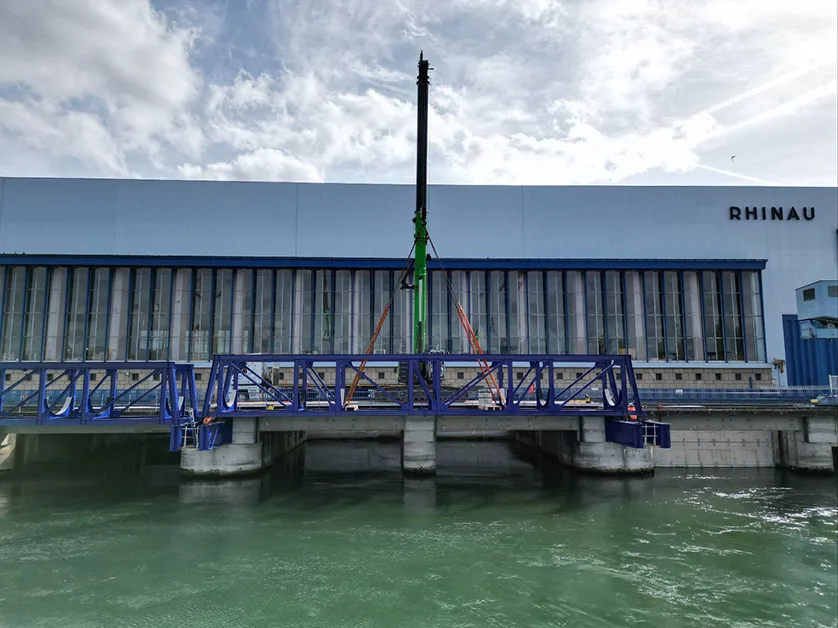

Installation of above-water structures and anchors with continuity of power plant operation

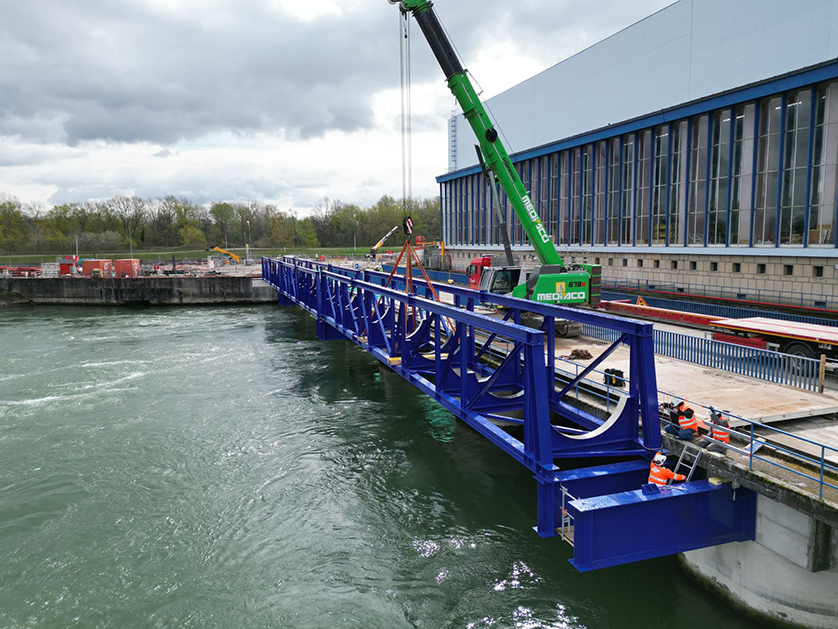

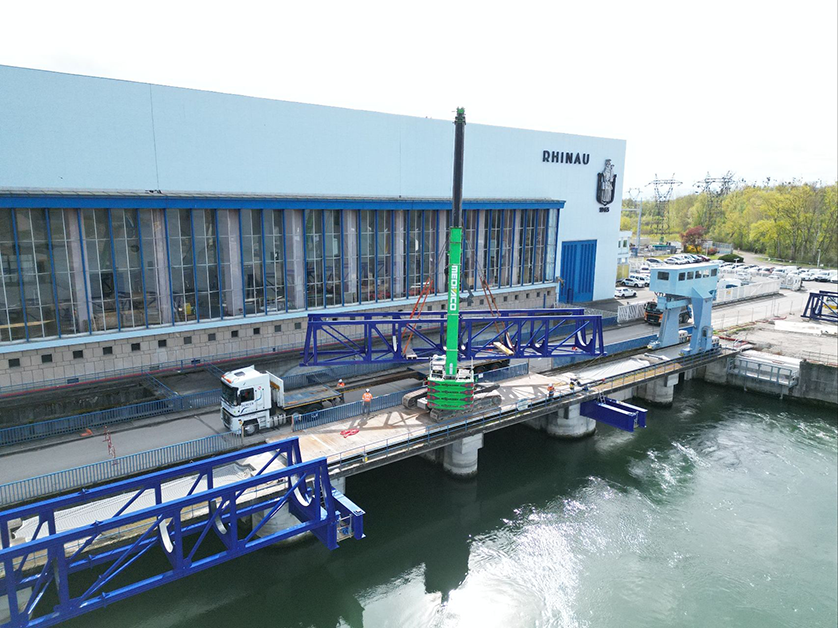

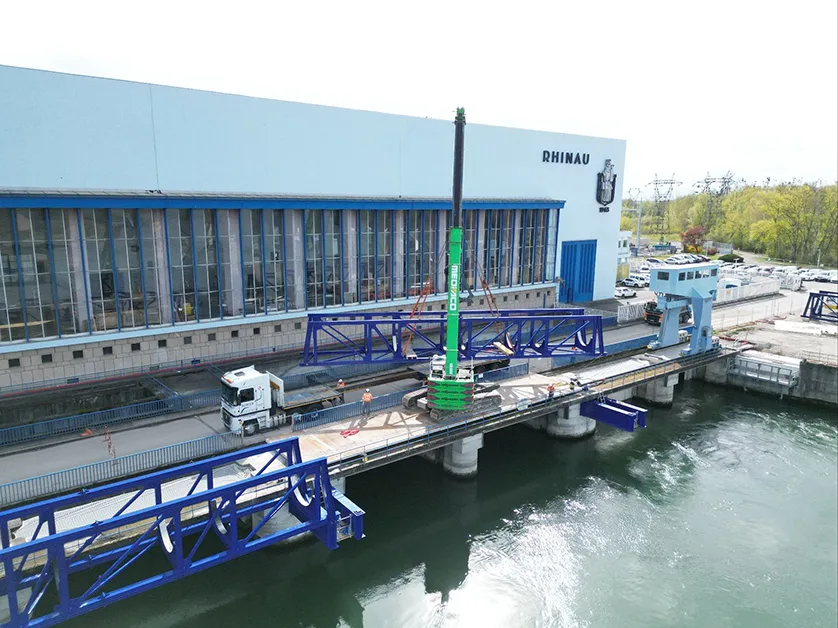

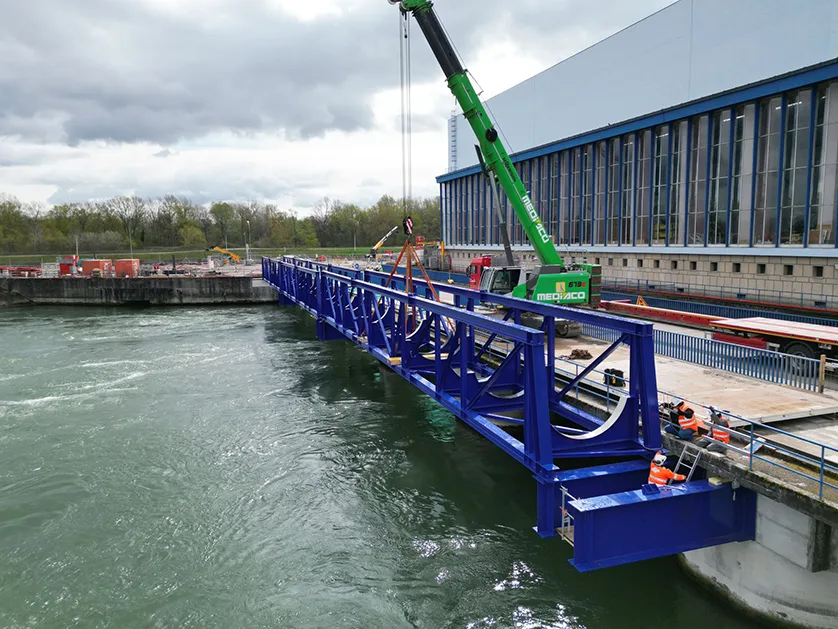

Lifting the structures from a road bridge over the dam piers with a large overhang
GRP pipe stresses (low rotation at junctions)
Success factors :
Collaboration of all stakeholders throughout the project
Mutual trust between parties
Numerous exchanges between players
The benefits of BIM and Trimble solutions :
Use layout manager with layout point macro to export coordinates
Working with the existing environment
Easier management of interfaces (anchors, pipe supplier, new and existing civil engineering structures, etc.) with the various parties involved
Simplified exchanges thanks to visualization and sharing of information throughout the project
INEXOM's main role
Design office during the execution phase
